Simplest Freq/Duty generator an measure


Post new topic   Reply to topic    www.mcselec.com Forum Index -> Share your working BASCOM-AVR code here
View previous topic :: View next topic
Author Message
EDC

Bascom Expert



Joined: 26 Mar 2014
Posts: 675

PostPosted: Wed May 22, 2019 2:52 pm    Post subject: Simplest Freq/Duty generator an measure Reply with quote

I really don know why I dont post this simplest method for generate desired square wave.
I was think that this is already shared so maybe Im belated...

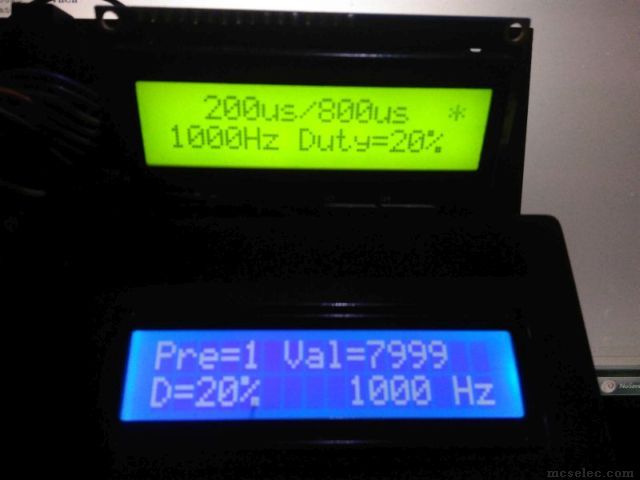

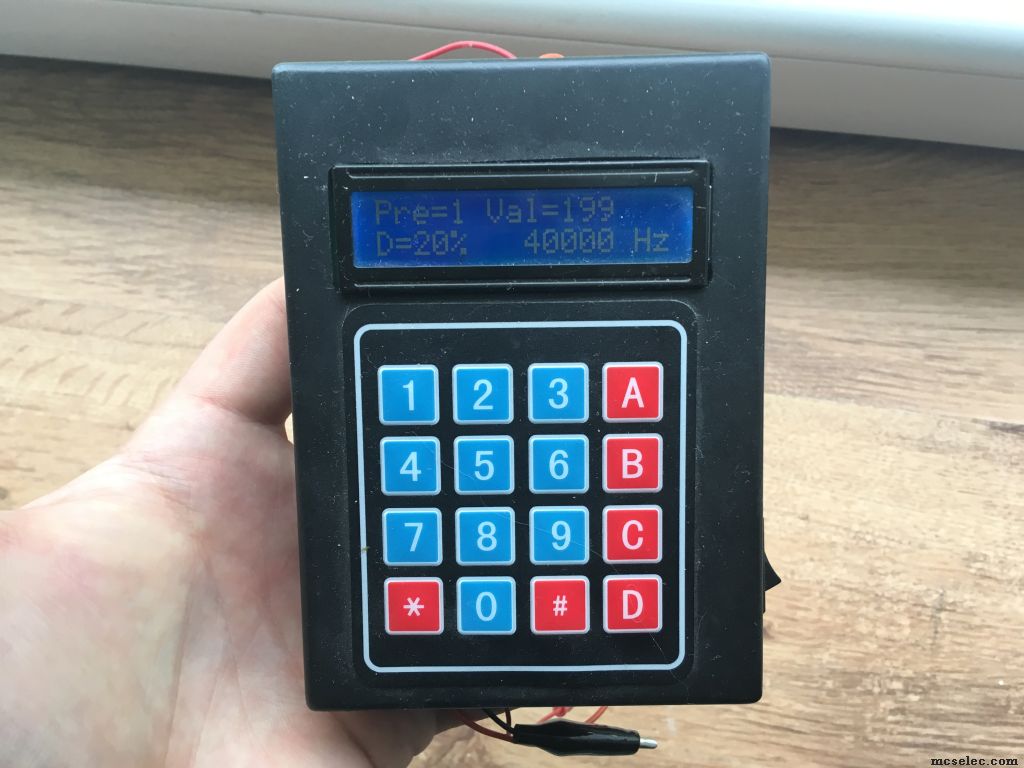

This two codes and schematics enable to generate square wave you want by entering it with keypad..and second code is "complementary" Very Happy It measure but only in designed spectrum.
Back to top
View user's profile Visit poster's website
albertsm

Administrator



Joined: 09 Apr 2004
Posts: 4980
Location: Holland

PostPosted: Wed May 22, 2019 8:22 pm    Post subject: Reply with quote

Thanks for sharing Very Happy
_________________
Mark
Back to top
View user's profile Visit poster's website
Arek2014

Bascom Member



Joined: 30 Dec 2014
Posts: 20
Location: Kielce

PostPosted: Wed Sep 25, 2019 8:56 pm    Post subject: Reply with quote

Simple generator Smile

Code:
$crystal = 8000000
Config Timer1 = Timer , Prescale = 1 ,clear timer = 1, Compare_a = Toggle    'generator frequency!!! OC1A
'Ocr1a = 500
dim freq as word
dim f as dword
Enable Interrupts
enable timer1

do
f = 4000000 / freq  'f crystal / 2 !!!
print f ; "Hz"
Ocr1a = freq    'changing dim freq --> change frequency
loop
