Bascom Spi Newbie Problem
Goto page 1, 2  Next

Post new topic   Reply to topic    www.mcselec.com Forum Index -> BASCOM-AVR
View previous topic :: View next topic
Author Message
MichaelB.

Bascom Member



Joined: 04 May 2017
Posts: 43

PostPosted: Wed Jul 12, 2017 11:10 am    Post subject: Bascom Spi Newbie Problem Reply with quote

Hi again, for a newbie Problem, and need a Specialist for SPI.
This time i try me on the SPI comunication between a Atmega32 and a SCA100T-D02 Anglesensor.
I make some Comments in the Code for you that will may help.

First, i had Create and send a 8 bit register code to the Anglesensor, to say that i will only read the 11 bit " Y " Values from the Sensor.
After that, i send two 8 bit packages to Shift it in the sensor, and the Sensor answers on the MISO line with the Y values.

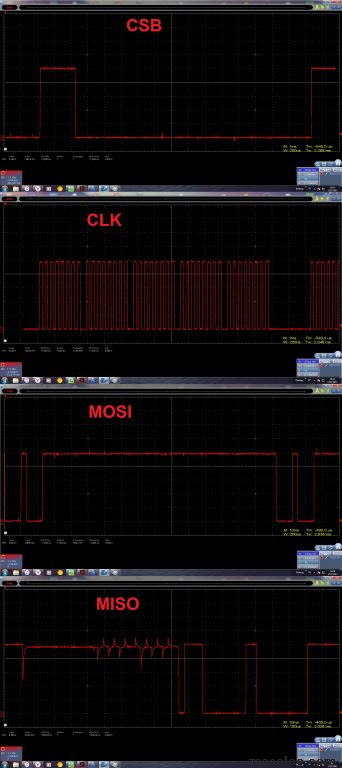

I checked that with my "PeakTech 1350" Pen-Type Oscilloscpoe.
The "Y" Values on the MISO line is changing as Expected when tilt the Sensor.
BUT. Nothing more happens. My expectaion is that the MISO data "LoadY" is convert it into "Wert1"
The Zero Angle Position is "10000000000" witch is 1024, and in my Code it shall show me on my 7Segments a " 0 " on my Breadbord.
But it shows nothing, what do i miss here. Can anyone Help me in this case?

Best Regards
Michael

(BASCOM-AVR version : 2.0.7.8 )
Back to top
View user's profile
MWS

Bascom Member



Joined: 22 Aug 2009
Posts: 1944

PostPosted: Wed Jul 12, 2017 6:36 pm    Post subject: Reply with quote

First: you can not be serious to post code as bitmap.

In case the uC is the master, SPI communication depends on shifting bits out via MOSI, master out slave in, and getting bits in via MISO, master in slave out.
The visible bitmap-part of your code uses nowhere commands to get data like SPIIN, SPIMOVE, there's only SPIOUT, you only talk but you do not listen.

Do you expect the requested bits are somehow magically transferred into the uC?
You have to cut down the controllers case at least one mm to make that magic work, i.e. let it out LOL
Back to top
View user's profile
albertsm

Administrator



Joined: 09 Apr 2004
Posts: 5278
Location: Holland

PostPosted: Wed Jul 12, 2017 9:20 pm    Post subject: Reply with quote

Michael, some pictures say more than 1000 words but in order to give help, you should post code, and please embed them with the CODE tags.
This way we can copy and past the code and check it.
Also, when using some chip, give a link to the data sheet PDF so we do not need to search for the data sheet.

_________________
Mark
Back to top
View user's profile Visit poster's website
MichaelB.

Bascom Member



Joined: 04 May 2017
Posts: 43

PostPosted: Thu Jul 13, 2017 12:42 pm    Post subject: Reply with quote

Oh sure. Here is the PDF and the Code.
http://www.produktinfo.conrad.com/datenblaetter/400000-424999/406067-da-01-en-NEIGUNGSSENSOR_SCA100T_D02.pdf

Code:

$regfile = "m32def.dat"
$crystal = 16000000
$framesize = 256
$swstack = 256
$hwstack = 256



Config Porta.0 = Output
Config Porta.1 = Output
Config Porta.2 = Output
Config Porta.3 = Output
Config Porta.4 = Output
Config Porta.5 = Output
Config Porta.6 = Output
Config Porta.7 = Output

Config Portb.0 = Output                                     'LED
Config Portb.1 = Output
Config Portb.2 = Output
Config Portb.3 = Output

Config Portc.0 = Output                                     'LED
Config Portc.1 = Output
Config Portc.6 = Output
Config Portc.7 = Output

Config Portd.4 = Output                                     'LED
Config Portd.5 = Output

  'Links
LEDLa alias PortB.0                                         ' 1er
LEDLb alias portB.1
LEDLc alias PortB.2
LEDLd alias PortB.3
LEDLe alias Porta.0
LEDLf alias Porta.1
LEDLg alias Porta.2

LEDL2b alias Porta.6                                        '10er
LEDL2c alias Porta.7

'Rechts

LEDRa alias Portc.0
LEDRb alias Portc.1                                         '1er
LEDRc alias Porta.3
LEDRd alias Portc.6
LEDRe alias Portc.7
LEDRf alias Porta.4
LEDRg alias Porta.5

LEDR2b alias Portd.5                                        '10er
LEDR2c alias Portd.4

Config Portb.4 = Output                                     'Chipselect
Portb.4 = 1                                                 'Chipselect = off

Dim LoadY as Word                                           '11 bit Slave Value Output (MISO)

Dim LoadYL as Byte at LoadY Overlay
Dim LoadYH as Byte at LoadY + 1 Overlay

Dim WertY as Byte
WertY = &B00010001                                          ' Y slave Register code

Dim Wert1 as Word

Config SPI = Hard , Interrupt = off , Master = Yes , Data_order = Msb , Polarity = Low , Phase = 0 , Clockrate = 128 , Noss = 1       ' mega32 with 16mhz
Spiinit
Cls

Do

      Portb.4 = 0                                           'chip select on
      Spiout WertY , 1                                      ' Send "Y" Register code
      Spiout LoadYH , 1                                     'Send first 8 Bit of a 16 bit Word
      Spiout LoadYL , 1                                     ' Send second 8 Bit of a 16 bit Word
      Portb.4 = 1                                           'chip select off
      Wert1 = LoadY



                                                                         ' Right


        If Wert1 = 1009 then                                ' 15
                 LEDRa = 1
                 LEDRf = 1
                 LEDRg = 1
                 LEDRc = 1
                 LEDRd = 1
                 LEDR2b = 1
                 LEDR2c = 1
                 waitms 5000
                 LEDRa = 0
                 LEDRf = 0
                 LEDRg = 0
                 LEDRc = 0
                 LEDRd = 0
                 LEDR2b = 0
                 LEDR2c = 0
        End if

        If Wert1 = 1010 then                                ' 14
                 LEDRf = 1
                 LEDRg = 1
                 LEDRb = 1
                 LEDRc = 1
                 LEDR2b = 1
                 LEDR2c = 1
               waitms 5000
                 LEDRf = 0
                 LEDRg = 0
                 LEDRb = 0
                 LEDRc = 0
                 LEDR2b = 0
                 LEDR2c = 0
        End if

        If Wert1 = 1011 then                                ' 13
                 LEDRa = 1
                 LEDRb = 1
                 LEDRg = 1
                 LEDRc = 1
                 LEDRd = 1
                 LEDR2b = 1
                 LEDR2c = 1
                waitms 5000
                 LEDRa = 0
                 LEDRb = 0
                 LEDRg = 0
                 LEDRc = 0
                 LEDRd = 0
                 LEDR2b = 0
                 LEDR2c = 0
        End if

        If Wert1 = 1012 then                                ' 12
                 LEDRa = 1
                 LEDRb = 1
                 LEDRg = 1
                 LEDRe = 1
                 LEDRd = 1
                 LEDR2b = 1
                 LEDR2c = 1
                  waitms 5000
                 LEDRa = 0
                 LEDRb = 0
                 LEDRg = 0
                 LEDRe = 0
                 LEDRd = 0
                 LEDR2b = 0
                 LEDR2c = 0
        End if

        If Wert1 = 1013 then                                ' 11
                 LEDRb = 1
                 LEDRc = 1
                 LEDR2b = 1
                 LEDR2c = 1
                 waitms 5000
                 LEDRb = 0
                 LEDRc = 0
                 LEDR2b = 0
                 LEDR2c = 0
        End if

        If Wert1 = 1014 then                                ' 10
                 LEDRa = 1
                 LEDRb = 1
                 LEDRc = 1
                 LEDRd = 1
                 LEDRe = 1
                 LEDRf = 1
                 LEDR2b = 1
                 LEDR2c = 1
                 waitms 5000
                 LEDRa = 0
                 LEDRb = 0
                 LEDRc = 0
                 LEDRd = 0
                 LEDRe = 0
                 LEDRf = 0
                 LEDR2b = 0
                 LEDR2c = 0
        End if

        If Wert1 = 1015 then                                ' 9
                 LEDRa = 1
                 LEDRb = 1
                 LEDRc = 1
                 LEDRd = 1
                 LEDRg = 1
                 LEDRf = 1
                 waitms 5000
                 LEDRa = 0
                 LEDRb = 0
                 LEDRc = 0
                 LEDRd = 0
                 LEDRg = 0
                 LEDRf = 0
        End if

        If Wert1 = 1016 then                                ' 8
                 LEDRa = 1
                 LEDRb = 1
                 LEDRc = 1
                 LEDRd = 1
                 LEDRe = 1
                 LEDRf = 1
                 LEDRg = 1
                 waitms 5000
                 LEDRa = 0
                 LEDRb = 0
                 LEDRc = 0
                 LEDRd = 0
                 LEDRe = 0
                 LEDRf = 0
                 LEDRg = 0
        End if

        If Wert1 = 1017 then                                ' 7
                 LEDRa = 1
                 LEDRb = 1
                 LEDRc = 1
                 waitms 5000
                 LEDRa = 0
                 LEDRb = 0
                 LEDRc = 0
        End if

        If Wert1 = 1018 then                                ' 6
                 LEDRa = 1
                 LEDRf = 1
                 LEDRg = 1
                 LEDRe = 1
                 LEDRd = 1
                 LEDRc = 1
                 waitms 5000
                 LEDRa = 0
                 LEDRf = 0
                 LEDRg = 0
                 LEDRe = 0
                 LEDRd = 0
                 LEDRc = 0
        End if

        If Wert1 = 1019 then                                ' 5
                 LEDRa = 1
                 LEDRf = 1
                 LEDRg = 1
                 LEDRc = 1
                 LEDRd = 1
                 waitms 5000
                 LEDRa = 0
                 LEDRf = 0
                 LEDRg = 0
                 LEDRc = 0
                 LEDRd = 0
        End if

        If Wert1 = 1020 then                                ' 4
                 LEDRf = 1
                 LEDRg = 1
                 LEDRb = 1
                 LEDRc = 1
                 waitms 5000
                 LEDRf = 0
                 LEDRg = 0
                 LEDRb = 0
                 LEDRc = 0
        End if

        If Wert1 = 1021 then                                ' 3
                LEDRa = 1
                LEDRb = 1
                LEDRg = 1
                LEDRc = 1
                LEDRd = 1
                waitms 5000
                LEDRa = 0
                LEDRb = 0
                LEDRg = 0
                LEDRc = 0
                LEDRd = 0
        End if

        If Wert1 = 1022 then                                ' 2
               LEDRb = 1
               LEDRa = 1
               LEDRg = 1
               LEDRe = 1
               LEDRd = 1
               waitms 5000
               LEDRb = 0
               LEDRa = 0
               LEDRg = 0
               LEDRe = 0
               LEDRd = 0
        End if

        If Wert1 = 1023 then                                ' 1
              LEDRb = 1
              LEDRc = 1
              waitms 5000
              LEDRb = 0
              LEDRc = 0
        End if

        If Wert1 = 1024 then                                ' 0
              LEDRa = 1
              LEDRb = 1
              LEDRc = 1
              LEDRd = 1
              LEDRe = 1
              LEDRf = 1
              LEDLa = 1
              LEDLb = 1
              LEDLc = 1
              LEDLd = 1
              LEDLe = 1
              LEDLf = 1
              waitms 5000
              LEDRa = 0
              LEDRb = 0
              LEDRc = 0
              LEDRd = 0
              LEDRe = 0
              LEDRf = 0
              LEDLa = 0
              LEDLb = 0
              LEDLc = 0
              LEDLd = 0
              LEDLe = 0
              LEDLf = 0

        End if

                                                                            'Left


       If Wert1 = 1025 then                                 '1
             LEDLb = 1
             LEDLc = 1
             waitms 5000
             LEDLb = 0
             LEDLc = 0
       End if

       If Wert1 = 1026 then                                 '2
             LEDLb = 1
             LEDLg = 1
             LEDLa = 1
             LEDLe = 1
             LEDLd = 1
             waitms 5000
             LEDLb = 0
             LEDLg = 0
             LEDLa = 0
             LEDLe = 0
             LEDLd = 0
       End If

       If Wert1 = 1027 then                                 '3
             LEDLa = 1
             LEDLb = 1
             LEDLg = 1
             LEDLc = 1
             LEDLd = 1
             waitms 5000
             LEDLa = 0
             LEDLb = 0
             LEDLg = 0
             LEDLc = 0
             LEDLd = 0
       End If

       If Wert1 = 1028 then                                 '4
             LEDLf = 1
             LEDLg = 1
             LEDLb = 1
             LEDLc = 1
             waitms 5000
             LEDLf = 0
             LEDLg = 0
             LEDLb = 0
             LEDLc = 0
       End if

       If Wert1 = 1029 then                                 '5
             LEDLa = 1
             LEDLf = 1
             LEDLg = 1
             LEDLc = 1
             LEDLd = 1
             waitms 5000
             LEDLa = 0
             LEDLf = 0
             LEDLg = 0
             LEDLc = 0
             LEDLd = 0
       End if

       If Wert1 = 1030 then                                 '6
             LEDLa = 1
             LEDLf = 1
             LEDLg = 1
             LEDLc = 1
             LEDLd = 1
             waitms 5000
             LEDLa = 0
             LEDLf = 0
             LEDLg = 0
             LEDLc = 0
             LEDLd = 0
       End if

       If Wert1 = 1031 then                                 '7
              LEDLa = 1
              LEDLb = 1
              LEDLc = 1
              waitms 5000
              LEDLa = 0
              LEDLb = 0
              LEDLc = 0
       End if

       If Wert1 = 1032 then                                 '8
              LEDLa = 1
              LEDLb = 1
              LEDLc = 1
              LEDLd = 1
              LEDLe = 1
              LEDLf = 1
              LEDLg = 1
              waitms 5000
              LEDLa = 0
              LEDLb = 0
              LEDLc = 0
              LEDLd = 0
              LEDLe = 0
              LEDLf = 0
              LEDLg = 0
       End if

       If Wert1 = 1033 then                                 '9
              LEDLa = 1
              LEDLb = 1
              LEDLc = 1
              LEDLd = 1
              LEDLf = 1
              LEDLg = 1
              waitms 5000
              LEDLa = 0
              LEDLb = 0
              LEDLc = 0
              LEDLd = 0
              LEDLf = 0
              LEDLg = 0
       End if

       If Wert1 = 1034 then                                 '10
              LEDLa = 1
              LEDLb = 1
              LEDLc = 1
              LEDLe = 1
              LEDLf = 1
              LEDLd = 1
              LEDL2b = 1
              LEDL2c = 1
              waitms 5000
              LEDLa = 0
              LEDLb = 0
              LEDLc = 0
              LEDLe = 0
              LEDLf = 0
              LEDLd = 0
              LEDL2b = 0
              LEDL2c = 0
       End if

       If Wert1 = 1035 then                                 '11
              LEDLb = 1
              LEDLc = 1
              LEDL2b = 1
              LEDL2c = 1
              waitms 5000
              LEDLb = 0
              LEDLc = 0
              LEDL2b = 0
              LEDL2c = 0
       End if

       If Wert1 = 1036 then                                 '12
               LEDLa = 1
               LEDLb = 1
               LEDLg = 1
               LEDLe = 1
               LEDLd = 1
               LEDL2b = 1
               LEDL2c = 1
               waitms 5000
               LEDLa = 0
               LEDLb = 0
               LEDLg = 0
               LEDLe = 0
               LEDLd = 0
               LEDL2b = 0
               LEDL2c = 0
       End if

       If Wert1 = 1037 then                                 '13
               LEDLa = 1
               LEDLb = 1
               LEDLc = 1
               LEDLd = 1
               LEDLg = 1
               LEDL2b = 1
               LEDL2c = 1
               waitms 5000
               LEDLa = 0
               LEDLb = 0
               LEDLc = 0
               LEDLd = 0
               LEDLg = 0
               LEDL2b = 0
               LEDL2c = 0
       End if

       If Wert1 = 1038 then                                 '14
               LEDLf = 1
               LEDLg = 1
               LEDLb = 1
               LEDLc = 1
               LEDL2b = 1
               LEDL2c = 1
               waitms 5000
               LEDLf = 0
               LEDLg = 0
               LEDLb = 0
               LEDLc = 0
               LEDL2b = 0
               LEDL2c = 0
       End if

       If Wert1 = 1039 then                                 '15

               LEDLa = 1
               LEDLf = 1
               LEDLg = 1
               LEDLc = 1
               LEDLd = 1
               LEDL2b = 1
               LEDL2c = 1
               waitms 5000
               LEDLa = 0
               LEDLf = 0
               LEDLg = 0
               LEDLc = 0
               LEDLd = 0
               LEDL2b = 0
               LEDL2c = 0
       End if

Loop
End
Back to top
View user's profile
kimmi

Moderator



Joined: 24 Feb 2006
Posts: 1922
Location: Denmark

PostPosted: Thu Jul 13, 2017 4:05 pm    Post subject: Reply with quote

why do you have "Cls" in your code its for lcd !!!!

and how did you connect 7 segment the :
Code:
LEDL2b alias Porta.6                                        '10er
LEDL2c alias Porta.7

LEDR2b alias Portd.5                                        '10er
LEDR2c alias Portd.4


is not clear to me what it do

_________________
/ Kim
Back to top
View user's profile Visit poster's website MSN Messenger
MichaelB.

Bascom Member



Joined: 04 May 2017
Posts: 43

PostPosted: Thu Jul 13, 2017 5:39 pm    Post subject: Reply with quote

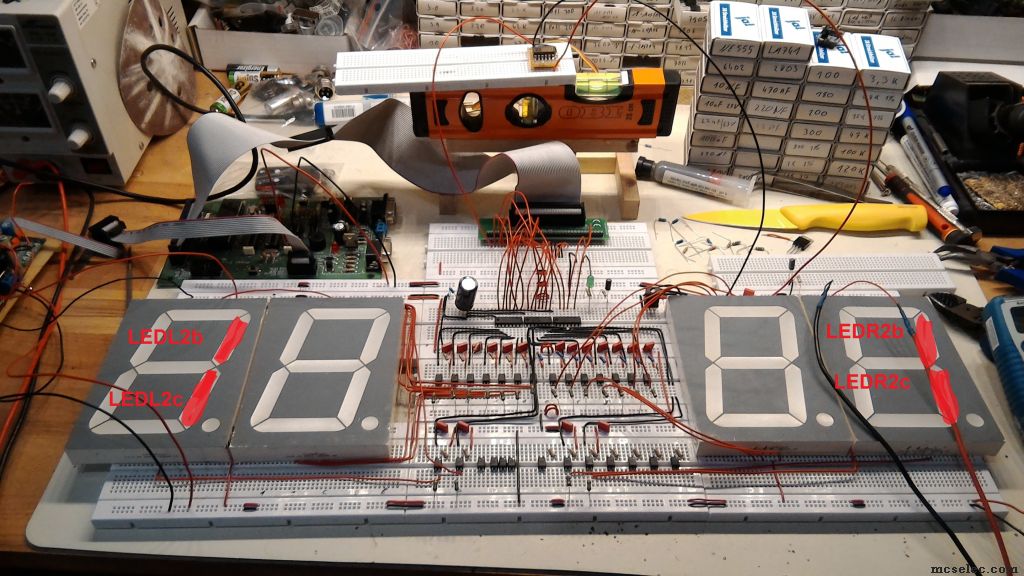

Maybe my mess will help you ^^

Back to top
View user's profile
MWS

Bascom Member



Joined: 22 Aug 2009
Posts: 1944

PostPosted: Thu Jul 13, 2017 6:48 pm    Post subject: Reply with quote

Hmm, what you're discussing about?
Led-pins?
Why?
It may be funny to discuss such things, but this does not solve anything. Makes no sense.

I wrote it already: if one wants to get data, one needs to fetch them, in this case from MOSI.
And this has to be done by clocking 11 bits in, the schema on page 12 shows exactly how to do it.

As it is described there, 11 bits need to be clocked in.
It is not clear what happens, if 16 bits are clocked in, in case the chip locks up while trying to clock 16 bit, then reading data can not be done with hardware SPI, which works on multiples of its register width of 8 bits.
Then it needs to be done with some simple code, however watching the TO's uninspired code-snake, I'm not sure if he can handle it.

But in case he's lucky, it won't matter whether clocking 11 or 16 bits in, clocking 2 bytes in by SPIIN() will be enough then, the 5 bits with invalid data can be removed either by shifting or masking.
Back to top
View user's profile
albertsm

Administrator



Joined: 09 Apr 2004
Posts: 5278
Location: Holland

PostPosted: Thu Jul 13, 2017 8:09 pm    Post subject: Reply with quote

TS mentioned he is a newbie with bascom so it will be good to show how to do it better.
But you are right : the LED stuff complicates and distracts from the actual problem.

When having a problem it is good practice to isolate it. this means : create a short as possible sample that still works (or should work). This is also true for the hardware.
For debugging you can use a 7-segment display but i would recommend to use the UART/serial port. that way you can simply use : PRINT "somevalue " ; wert
The help shows how to connect the TX pin to a max232 for connection to the PC.

spimove() might indeed work but a simple loop where you create the signals can do the job too. try to get a proper debug output first. then try hw SPI and if that does not work you can try the 'make your own signals' solution.

_________________
Mark
Back to top
View user's profile Visit poster's website
kimmi

Moderator



Joined: 24 Feb 2006
Posts: 1922
Location: Denmark

PostPosted: Thu Jul 13, 2017 11:55 pm    Post subject: Reply with quote

MWS wrote:
Hmm, what you're discussing about?
Led-pins?
Why?
It may be funny to discuss such things, but this does not solve anything. Makes no sense.


I know you did not see why I ask
but the long setup of the 7 segment's
can be made more simple with a lookup table

MWS wrote:

But in case he's lucky, it won't matter whether clocking 11 or 16 bits in, clocking 2 bytes in by SPIIN() will be enough then, the 5 bits with invalid data can be removed either by shifting or masking.


when it's so simple why don't you just tell him that : Loadyh & Loadyl must be Spiin
Code:
   Portb.4 = 0                                              'chip select on
   Spiout WertY , 1                                          ' Send "Y" Register code
   Spiin Loadyh , 1                                         'Get first 3 Bit of a 11 bit Word
   Spiin Loadyl , 1                                         ' Get second 8 Bit of a 11 bit Word
   Portb.4 = 1                                              'chip select off


We can all make a simple write error but never see it (blind from 1000 times code read)

@Addon file for a simpler 7 segment

_________________
/ Kim
Back to top
View user's profile Visit poster's website MSN Messenger
MichaelB.

Bascom Member



Joined: 04 May 2017
Posts: 43

PostPosted: Fri Jul 14, 2017 7:31 am    Post subject: Reply with quote

I tryed also this version:

Code:
Portb.4 = 0

Spiout WertY , 1
Spiout LoadYH , 1
Spiout LoadYL , 1

Spiin LoadYH ,1
Spiin LoadYL , 1

Portb.4 = 1


This make more sense to me, but sill nothing on the Led┤s. I tryed to Fuse the Spiin bytes together and Shifted 5 bits to the Right, i make it complicate as hell, and confused me more.

In my Code without Spiin, i thought it must work because its a shift register. That data that comes out of the Master MOSI Line, comes automaticly in the Master MISO Line, and i thought Spiin is only for the Slave Devices.
Next Week i can try it only with Spiin.

And sorry about the Confusing Breadboard Picture.
Back to top
View user's profile
MWS

Bascom Member



Joined: 22 Aug 2009
Posts: 1944

PostPosted: Fri Jul 14, 2017 10:10 am    Post subject: Reply with quote

kimmi wrote:
I know you did not see why I ask

I simply did not bother to think about, as the main problem is so obvious, that it needs to fixed first, before making any cosmetic changes.
The code for the display is a mess, agreed, but has the potential to work. But that does not matter, if no data coming in, which is the primary goal.
After the main issue is fixed, you'll have a point and I will agree, that this messy display-routine urgently needs a fix.
Back to top
View user's profile
benoit

Bascom Member



Joined: 24 Jul 2007
Posts: 177

PostPosted: Fri Jul 14, 2017 12:31 pm    Post subject: Reply with quote

HI
Just:
THE STATUT FOR PORT B5 AND PORT B6 ARE NOT DEFINED AS INPUT OR OUTPUT .
I don t know if it can change something.
thank you to tell
Very Happy
Back to top
View user's profile
MWS

Bascom Member



Joined: 22 Aug 2009
Posts: 1944

PostPosted: Fri Jul 14, 2017 1:02 pm    Post subject: Reply with quote

MichaelB. wrote:
In my Code without Spiin, i thought it must work because its a shift register. That data that comes out of the Master MOSI Line, comes automaticly in the Master MISO Line
No, there's no magic reading of MISO.
Quote:
and i thought Spiin is only for the Slave Devices.
The controller is configured as SPI-master, your sensor is the slave.

If you check page 12 of the datasheet, you'll notice 8 bits, the command (watch SCK, 8-times going from low to high) is clocked out and after eleven bits are clocked in, so you can try to SPIOUT command-byte and after SPIIN result-word.

But, and I mentioned that in my post before, it may confuse the sensor, as it expects 11 clocks to shift out its data, while actually the SCK-pin is driven with 16 clocks from the ÁC.
Watching the page 12 diagram, CSB (the enable-pin of the sensor) goes low first, then the command byte is clocked to the sensor, after the result is clocked from the sensor, the MOSI-line is crisscrossed meanwhile, as the MOSI level is ignored, while getting the result via MISO.

On the panoramic view of the electronic one can barely notice 4 wires running to the sensor, that have to be: plus, ground, MOSI, MISO.
The fifth wire for CSB is not visible, so it can be assumed, that CSB is not connected or constantly held low, means the sensor is always addressed.
It may happen then, that the superfluous 5 clocks irritate the sensor and are taken as part of a next command-byte, this way screwing all further reads, even if the first one actually gave a good result. Then you need some sort of custom soft-SPI, which exactly behaves as the controller expects it.

Because of this, it is highly recommendable to connect and drive CSB, as this explicitly tells the sensor the start of the sequence, which may also act as sensor-reset and would thus allow to clock even 16 bits, because it removes the irritation of the 5 bits too much.
Back to top
View user's profile
MWS

Bascom Member



Joined: 22 Aug 2009
Posts: 1944

PostPosted: Fri Jul 14, 2017 1:18 pm    Post subject: Reply with quote

benoit wrote:
THE STATUT FOR PORT B5 AND PORT B6 ARE NOT DEFINED AS INPUT OR OUTPUT

Why do you shout out?

SPIINIT takes care of setting the portpins, you just need to read the help.
Back to top
View user's profile
MichaelB.

Bascom Member



Joined: 04 May 2017
Posts: 43

PostPosted: Mon Jul 17, 2017 5:30 pm    Post subject: Reply with quote

My messy Test/Learn Programm is more Logic to me Very Happy

The Programm from Kimmi didnt change anything.

I have here a Screenshot collection from the Sensor. The MISO line doesnt look Healthy at all Very Happy Shocked Shocked
In this case i use this Code:
Code:
Portb.4 = 0                                           'chip select on
      Spiout RDAY , 1                                       ' Send "Y" Register code
      Spiout LoadYH , 1                                     'Send first 8 Bit of a 16 bit Word
      Spiout LoadYL , 1                                     ' Send second 8 Bit of a 16 bit Word
      Spiin LoadYH , 1
      Spiin LoadYL , 1
      Portb.4 = 1                                           'chip select off
      Wert1 = LoadY


Back to top
View user's profile
Display posts from previous:
Post new topic   Reply to topic    www.mcselec.com Forum Index -> BASCOM-AVR All times are GMT + 1 Hour
Goto page 1, 2  Next
Page 1 of 2


Jump to:
You cannot post new topics in this forum
You cannot reply to topics in this forum
You cannot edit your posts in this forum
You cannot delete your posts in this forum
You cannot vote in polls in this forum
You cannot attach files in this forum
You cannot download files in this forum
