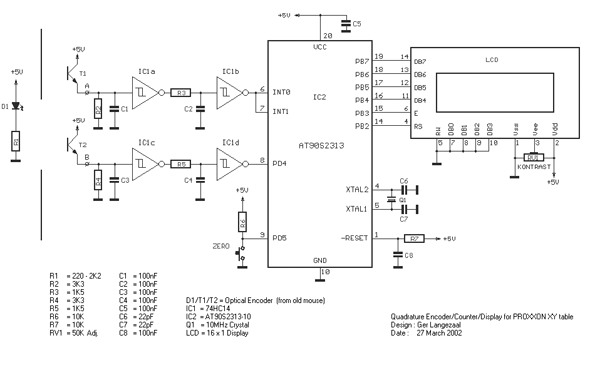

AN #115 - Quadrature Decoder/Counter and Display Print
Quadrature Decoder/Counter and Display

Application note submitted by Ger Langezaal.


Here is some additional comment from Ger:

For the encoder I used the one from an old "mouse". There are two of them in each mouse.
The resolution of both axes is 0.05 mm and the display lloks like this:  [ X  -106.45 mm ] for example

For each ax I used an AT90S2313-10 with display(16 x 1).
The problem of the "missing pulse" during a change of the direction within a pulsewidth,
I solved with software. Encoder phase-A generates an interrupt for both edges.
INT0 and INT1 are connected because the 2313 does not have a toggle interrupt like the 4433.
In the ISR only the phase-B and phase-A need to be compared with each other.
If A = B then increment counter otherwise decrement counter.
The counter value converting to a value in mm is dependend of the used encode and mechanical construction.

For the signal conditioning between the encoder and AVR I used a 74HC14.

Download the source code. It is also shown below:


'-------------------------------------------------------------------------------
' Filename : QuadrDec_1.0.bas
' Purpose : Quadrature Decoder/Counter and Display
' Author : Ger langezaal
' Date : 5 April 2002
' Compiler : BASCOM-AVR Rev. 1.11.6.5
'
'-------------------------------------------------------------------------------
'
' Algorithm:
' Interrupt on both edges of phase A
' Test phase B in ISR
' When phase B <> phase A then decrement counter
' When phase B = phase A then increment counter
' Convert counter value to displacment units
' Format value in string and display
'
'-------------------------------------------------------------------------------
'
' Setup for AT90S2313-10
'
' INT0 edge is set to rising edge
' INT1 edge is set to falling edge
' Encoder phase A to INT0 and INT1 (PD2 and PD3)
' Encoder phase B to PD4
' Pushbutton between Portd.5 and GND (display zero)
' LCD at PortB
'
' Example for PROXXON KT150 XY table:
' Displacement/rev = 2 mm
' Encoder resolution = 20 pulses/rev
' Interrupt on both pulse edges = 40 interrupts/rev
' Dial resolution: 2 mm / 40 = 0.05 mm
' The optical encoder came from a used mouse (two available)
'
'-------------------------------------------------------------------------------
'
' Options/Compiler/Chip:
' HW Stack 48
' Soft Stack 8
' Framesize 16
'
'-------------------------------------------------------------------------------
'
$regfile = "2313def.dat"
$crystal = 10000000 '10 MHz

Dim X_axis As String * 8 'LCD format string
Dim Axis_raw As Integer 'optical pulse counter
Dim Axis_mm As Integer 'counter value converted to mm
' 'range: -327.65 to +327.65 mm

Const Enc_res = 20 * 2 'encoder resolution * 2
Const Conv_mm = 200 / Enc_res 'dial resolution = 0.05 mm

Config Portb = Output
Config Portd = Input
Portd = 255 'enable Portd pullup's

Config Lcdbus = 4
Config Lcd = 16 * 1
Config Lcdpin = Pin , Db4 = Pb.4 , Db5 = Pb.5 , Db6 = Pb.6 , Db7 = Pb.7 , E = Pb.3 , Rs = Pb.2
Cls
Cursor Off

Phase_a
Alias Pind.2 'INT0 also connected to Pind.3 = INT1
Phase_b
Alias Pind.4
Axis_rst
Alias Pind.5 'reset counter if low

'---[ Set Interrupt logic ]-----------------------------------------------------

Mcucr = &B00001011 'set interrupt edges
On Int0 Phase_a_edge 'ISR on rising edge
On Int1 Phase_a_edge 'ISR on falling edge
Enable Int0
Enable Int1
Enable Interrupts

'---[ Initialization ]----------------------------------------------------------

Lcd "X-Axis Rev.1.0"
Waitms 1000
Cls
Axis_raw
= 0

'---[ Main program loop ]-------------------------------------------------------

Do

If Axis_rst = 0 Then Axis_raw = 0 'reset counter if low

 Axis_mm
= Axis_raw * Conv_mm 'convert to mm
 X_axis
= Str(axis_mm) '
 X_axis
= Format(x_axis , " +0.00") 'format without leading zero's
' X_axis = Format(x_axis , "+000.00") 'format with leading zero's


Locate 1 , 1

Lcd "X " ; X_axis ; " mm" 'display

Waitms 200
Loop

'-------------------------------------------------------------------------------
End

'---[ Interrupt Service Routine ]-----------------------------------------------

Phase_a_edge
: 'Interrupt on rising and falling edge

If Phase_b <> Phase_a Then 'test phase B

Decr Axis_raw 'CCW

Else

Incr Axis_raw 'CW

End If
Return

'-------------------------------------------------------------------------------
