AN #11 - Using an I2C clock device with the PCF8583 Print
Using an I2C clock device with the PCF8583

Using an I2C clock device with the PCF8583.

This application note shows how to use the PCF8583 I2C clock
It has been tested in the Simulation Hardware mode.

The schematic is very simple since the IC only uses an XTAL and a capacitor

I used a Dontronics DT003 power-board as a basis, and a Dontronics prototypeboard for the PCF8583
With some modifications the DT104 could be used also.

Download source code in Bas

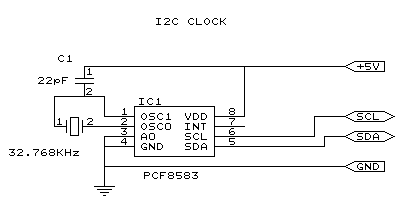

Schematic:
