AN #161 - Snowflake Print
 Rubashka Vasiliy , Ukraine , 2007

In eve of the New Year is accepted present the gift.

Particularly expensive and remembering become create their own hand.

The Idea of the snowflake much forgive; pardon - a catch "alive" snowflake, consider, catch following and etc until will come lighting up. Better, than created the Creator, us not under power, but here is try to do the cheap copy with this amazing original I have tried. That was thereof got, judge You.

The Snowflake is physically collected on two printed charges - 259 very bright lightly blue led on one and microcontroller ATMEGA16 with transistor key - on another. The Charge attach between itself single-in-line connector - by manifold valve. It is more comfortable for montage and further service. The Electronic scheme on microcontroller forms 32 independent channels with width-pulse inflexion. The Circuitry of the screen - a snowflakes is collected in 32 channels with mixed (parallel-consequent) by cut-in led. The Location led on screen was perfected on simulator, but their 12-beam symmetry was "spy on". Unique software has allowed to create bright, colorful, dynamic effect, which will decorate any holiday. The Program (BASCOM AVR) generates non-recurring, is sailing  going friend in friend patterns. At start program reads from nonvolatile memory EEPROM casual number, which is seasonally updated in operation  always to start with miscellaneous of the effect that will add else greater showing.

At repetition of the designs montage follows to begin with board of the controller. The having Interweaved controller and having exposed FUSE for functioning (working) from internal RC generator on 8 MHZ, as well as unplugged JTAG, install its on a board. Unsolder transistor keys with stud, possible proceed the scheme with checking. The Resistor 1 lump connect to cathode of the led, anode of the led on +12В, free drumstick of the resistor alternately to each of 32 outputs. We Observe fluent change to brightness of the led. If all orderly, go to the following stage - a montage of the board with led. In the beginning jumpers and comb, then several light-emitting diod channel, as from the centre. Under switched off power supply стыкуем the board and check functioning a device. The Main error - a wrong cut-in led. We Continue the montage before full victory. One advice: if you want that snowflake to be on glory, do not feel sorry the money on leds. Recommend to use with angle of the review 180 degrees and brightness more 0,5 cd. Power supply from network adapter 12В 500мА. The Snowflake will gain the more noble type if its decorate the decorative bracket. In is made from PVH plastic arts and is painted in steel color by aerosol enamel for cars.  I was made several snowflakes of the miscellaneous of the color. But the most striking, in my glance, are snowflake from blue led. If will use red or yellow leds, come to change the resistances a resistor, noted asterisk, on the following: R1- 560 Ohm, R2, R4 - 82 Ohm, R3, R5 - 160 Ohm. For blue, green and white led of the resistance is specified on scheme.

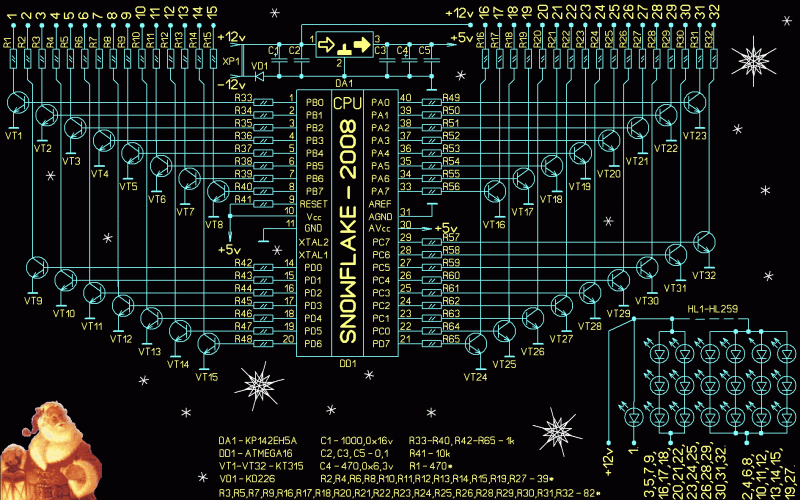

Schematic:

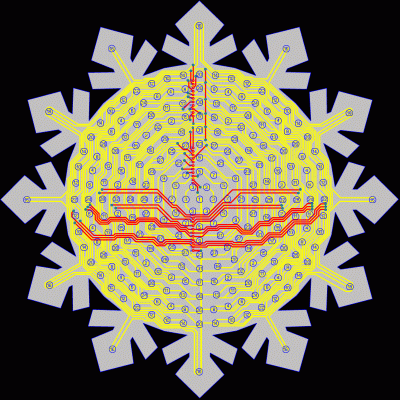

PCB:






Program:

'@@@@@@@@@@@@@@@@@@@@@@@@@@@@@@@@@@@@@@@@@@@@@@@@@@@@@@@@@@@@@@@@@@@@@@@@@@@@@@@
'@ Filename    : SNOWFLAKE                       *   *              *          @
'@ Revision    : 1.0           *                  * *            *  *  *       @
'@ Controller  : ATMEGA16                      * * * * *          * * *        @
'@ Compiler    : BASCOM-AVR 1.11.9.0   *          * *          *** * * ***     @
'@ Author      : Rubashka Vasiliy, Ukraine, 2008 *   *            * * *        @
'@ WWW      *  : http://ledeffects.net                           *  *  *       @
'@ Mail        : info@ledeffects.net    *                           *          @
'@@@@@@@@@@@@@@@@@@@@@@@@@@@@@@@@@@@@@@@@@@@@@@@@@@@@@@@@@@@@@@@@@@@@@@@@@@@@@@@
'
'                             !!!!! F U S E   B I T !!!!!
'
'LOCKBITS [FF]        --------------------------------------------------------------------------------
'Lockbit 65           11:No restrictions for SPM or LPM accessing the boot loader section
'Lockbit 43           11:No restrictions for SPM or LPM accessing the application section
'Lockbit 21           11:No memory lock features enabled for parallel and serial programming
'FUSEBITS [E4]        --------------------------------------------------------------------------------
'Fusebit C            1:BODLEVEL 2.7V
'Fusebit B            1:BODEN disabled
'Fusebit KLA987       100100:Int. RC Osc. 8 MHz; Start-up time: 6 CK + 64 ms; [CKSEL=0100 SUT=10]
'FUSEBITS HIGH [DF]   --------------------------------------------------------------------------------
'Fusebit High M       1:Disable OCD
'Fusebit High J       1:Disable JTAG
'Fusebit High l       0:SPI enabled
'Fusebit High H       1:CKOPT 1
'Fusebit High G       1:Erase EEPROM when chip erase
'Fusebit High FE      11:128 Words boot size , F80
'Fusebit High D       1:Reset vector is $0000
'#####################################################################################################

$crystal = 8000000                                          'internal generator 8 MHz
$regfile = "m16def.dat"
'Âńĺ ďîđňű - íŕ âűőîä
Config Porta = Output
Config Portb = Output
Config Portc = Output
Config Portd = Output

Enable Interrupts 'we allow interruptions
Config Timer0 = Timer , Prescale = 1                        'we adjust timer
Enable Timer0 'we allow functioning(working) the timer 0
On Timer0 Pwms                                              'work on taymer 0
Stop Timer0 'stop timer 0

Dim Led(32) As Byte 'variable brightness led
Dim X(32) As Byte 'brightness led from table of brightness
Dim Channel As Byte 'counter channel
Dim Lamda As Byte 'additional variable
Dim Tetta As Byte 'additional variable
Dim Tik As Byte 'counter teak timer

'#####################################################################################################
'Reading to variable brightness led recorded in previous session of the work
'that effect began with new place every time
For Channel = 1 To 32
Readeeprom Led(channel) , Channel
Next
Start Timer0 'start timer 0
'#####################################################################################################

Do 'Main cycle
'Perebor brightness all 32 channels from table of brightness on circle
'length of the circle of each channel differs on unit from other,
'so repetition effect does not exist.
'Small calculation: 1 channel - 32 steps, 2 channels - 31 steps, coincidence approaches through 32*31=992 step
'In our event 32 channels with at a walk from 192 before 160: 192*191*190* ... *162*161*160 = 1,2 e+74. !!!!!!!!!!

For Tetta = 1 To 32
 For Channel = 1 To 32
 Incr Led(channel)
    Lamda = 192 - Channel
 If Led(channel) = Lamda Then Led(channel) = 0
    X(channel) = Lookup(led(channel) , Pwm_led)
 Next
 Writeeeprom Led(tetta) , Tetta                             'Record to variable brightness led, for following session of the work
Next
Loop 'End main cycle
'#####################################################################################################

Pwms: 'work on timer 0 - an organization PWM
Incr Tik

If Tik = 255 Then
 Tik = 0
 Porta = 0
 Portb = 0
 Portc = 0
 Portd = 0
End If

If Tik > X(1) Then Portb.= 1
If Tik > X(2) Then Portb.= 1
If Tik > X(3) Then Portb.= 1
If Tik > X(4) Then Portb.= 1
If Tik > X(5) Then Portb.= 1
If Tik > X(6) Then Porta.= 1
If Tik > X(7) Then Porta.= 1
If Tik > X(8) Then Porta.= 1

If Tik > X(9) Then Porta.= 1
If Tik > X(10) Then Porta.= 1
If Tik > X(11) Then Porta.= 1
If Tik > X(12) Then Porta.= 1
If Tik > X(13) Then Porta.= 1
If Tik > X(14) Then Portc.= 1
If Tik > X(15) Then Portb.= 1
If Tik > X(16) Then Portd.= 1

If Tik > X(17) Then Portb.= 1
If Tik > X(18) Then Portb.= 1
If Tik > X(19) Then Portc.= 1
If Tik > X(20) Then Portc.= 1
If Tik > X(21) Then Portd.= 1
If Tik > X(22) Then Portd.= 1
If Tik > X(23) Then Portd.= 1
If Tik > X(24) Then Portc.= 1

If Tik > X(25) Then Portc.= 1
If Tik > X(26) Then Portd.= 1
If Tik > X(27) Then Portd.= 1
If Tik > X(28) Then Portd.= 1
If Tik > X(29) Then Portc.= 1
If Tik > X(30) Then Portc.= 1
If Tik > X(31) Then Portc.= 1
If Tik > X(32) Then Portd.= 1

Return

'#####################################################################################################

Pwm_led: 'Table to brightness led
'special location of importances of brightness in table allows under consequent choice is sailled light - extinguish leds,
'herewith being more halfs of time in switched off condition for building pattern , filled less than by half
Data 255 , 255 , 255 , 255 , 255 , 255 , 255 , 255 , 255 , 255 , 255 , 255 , 255 , 255 , 255 , 255 , 255 , 255
Data 255 , 255 , 255 , 255 , 255 , 255 , 255 , 255 , 255 , 255 , 255 , 255 , 255 , 255 , 255 , 255 , 255 , 255
Data 254 , 253 , 252 , 250 , 249 , 247 , 244 , 241 , 237 , 231 , 224 , 204 , 202 , 186 , 166 , 139 , 105 , 59
Data 0 , 59 , 105 , 139 , 166 , 186 , 202 , 204 , 224 , 231 , 237 , 241 , 244 , 247 , 249 , 250 , 252 , 253
Data 255 , 255 , 255 , 255 , 255 , 255 , 255 , 255 , 255 , 255 , 255 , 255 , 255 , 255 , 255 , 255 , 255 , 255
Data 255 , 255 , 255 , 255 , 255 , 255 , 255 , 255 , 255 , 255 , 255 , 255 , 255 , 255 , 255 , 255 , 255 , 255
Data 255 , 255 , 255 , 255 , 255 , 255 , 255 , 255 , 255 , 255 , 255 , 255 , 255 , 255 , 255 , 255 , 255 , 255
Data 254 , 253 , 252 , 250 , 249 , 247 , 244 , 241 , 237 , 231 , 224 , 204 , 202 , 186 , 166 , 139 , 105 , 59
Data 0 , 59 , 105 , 139 , 166 , 186 , 202 , 204 , 224 , 231 , 237 , 241 , 244 , 247 , 249 , 250 , 252 , 253
Data 255 , 255 , 255 , 255 , 255 , 255 , 255 , 255 , 255 , 255 , 255 , 255 , 255 , 255 , 255 , 255 , 255 , 255
Data 255 , 255 , 255 , 255 , 255 , 255 , 255 , 255 , 255 , 255 , 255 , 255 , 255 , 255 , 255 , 255 , 255 , 255

'#####################################################################################################
