AN #42 - 555 calculator using 89S8252 Print
By K.S. Sankar, Mostek India

          If you do a lot of r/c calculations for designing an oscillator circuit using IC 555, this project may come in  handy. Even though the 555 timer IC was first introduced around 1971 by Signetics Corporation which after 35 years is still very popular and used in many schematics, there seems to be no simple calculator design anywhere since then. A programmable calculator seems to be the only quick solution or writing a program to run on a PC. Switching on a Pentium for calculating r/c values seemed ridiculous to me.

A simpler method would be to use a micro controller ATMEL-AT89s8252 and a telephone type matrix keypad with an LCD display. The Software gets the r/c values and flashes the result.  A perfect companion on your work bench.

To minimise the number of components, the circuit uses only a 7805 5volt regulator , power ON led, pull-up resistor packs  and a reset switch besides the Keypad & LCD.

The program inputs Ra , Rb and C values through the keypad ( * is used as a decimal point and # as the ENTER key) in Kilo Ohms and Microfarads and displays  t1, t2, T in milli seconds and Frequency in hertz along with the duty cycle as a %.


To enter Ra=1k , RB=10k, C=10 Mfd ( result=7hz)

Press 1<enter>

Press 10<enter>

Press 10<enter>

And see the result

Press <enter> to continue

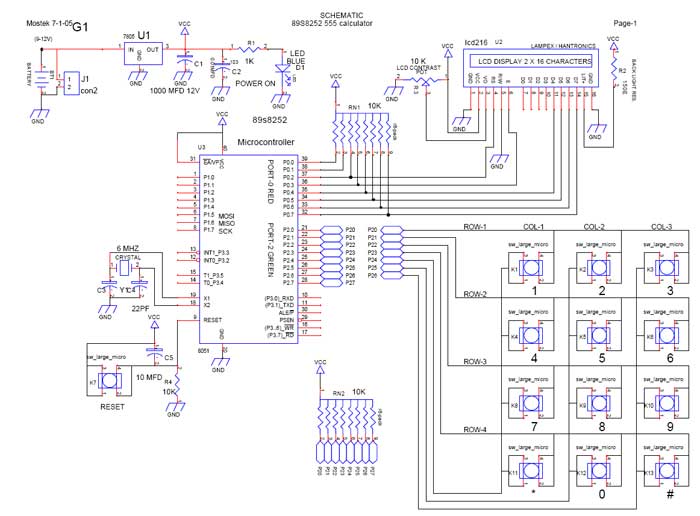

The software uses a matrix keypad scanning routine and a straight forward calculation to get the results. The Source code is self-explanatory and the schematic are shown.





Source code:

' 555lcd.bas ver8.1 21-oct-2006
' by K.S. Sankar www.mostek.biz India
' for MCS Electronics, Holland
' (byte end hex=) 80 in misc settings
'-------------------------------------
$large
$regfile = "89s8252.dat"
$crystal = 6000000

Dim N As Byte
Dim Blue As Byte
Dim Dtime As Byte
Dim Key As String * 1
Dim Kbchar As String * 10 , Tempstr As String * 11
Dim Col As Byte , Row As Byte
Dim Keyrel As Byte


Dim Ra As Single , Rb As Single , Cap As Single
Dim T1 As Single , T2 As Single , Freq As Single
Dim Duty As Single , Capt As Single

Declare Sub Getstring(kbchar As String * 10)
Declare Sub Kb_disp(key As String * 1)
Declare Sub Sub Zero()


Config Lcd = 16 * 2
Config Lcdpin = Pin , Db4 = P0.4 , Db5 = P0.5 , Db6 = P0.6 , Db7 = P0.7
Config Lcdpin = Pin , E = P0.3 , Rs = P0.2

Start:
Cls
'clear the LCD display
Lcd "555 calc Mostek"
Waitms 500


P1 = 0

' yellow
P0 = 0

' red
P2 = 255

' green bott as out and in
P3 = 0
' blue
'all ports off

Lowerline
Cursor On Blink
Lcd "RA in k:"
Call Getstring(kbchar)
Key =
Left(kbchar , 1)
If Key = "." Then
Tempstr =
"0" + Kbchar
Kbchar = Tempstr
End If


Ra =
Val(kbchar)
If Ra = 0 Then
Call Zero() : Goto Start
End If


Cls
Lcd "RB in k:"
Call Getstring(kbchar)
Key =
Left(kbchar , 1)
If Key = "." Then
Tempstr =
"0" + Kbchar
Kbchar = Tempstr
End If


Rb =
Val(kbchar)
If Rb = 0 Then
Call Zero() : Goto Start
End If

Cls
Lcd "C in mfd:"
Call Getstring(kbchar)
Key =
Left(kbchar , 1)
If Key = "." Then
Tempstr =
"0" + Kbchar
Kbchar = Tempstr
End If


Cap =
Val(kbchar)
If Cap = 0 Then
Call Zero() : Goto Start
End If

Cls
Lcd "Processing..."
Waitms 255
'-------------------------
'if Ra = 1.0 : Rb = 10.0 : Cap = 10.0
'then f=7hz

Ra = Ra * 1000
Rb = Rb * 1000
T1 = Ra + Rb
T1 = T1 * Cap
T1 = T1 / 1000000
T1 = T1 * 0.693
T2 = Rb * Cap
T2 = T2 / 1000000
T2 = T2 * 0.693
Capt = T1 + T2
Freq = 1 / Capt
Duty = T1 / Capt

T1 = T1 * 1000
T2 = T2 * 1000
Capt = Capt * 1000
Duty = Duty * 100


Cls
Lcd "RA ohms=" ; Ra
Lowerline
Lcd "RB ohms=" ; Rb
Call Getstring(kbchar)
' wait for # press on keypad

Cls
Lcd "cap=" ; Cap
Lowerline
Lcd "F hz=" ; Freq
Call Getstring(kbchar)
' wait for # press on keypad

Cls
Lcd "t1 ms=" ; T1
Lowerline
Lcd "t2 ms=" ; T2
Call Getstring(kbchar)
' wait for # press on keypad
Cls
Lcd "T ms=" ; Capt
Lowerline
Lcd "duty %=" ; Duty
Call Getstring(kbchar)
' wait for # press on keypad
Cls
Lcd "F hz=" ; Freq
Lowerline
Lcd "The end..press#"
Call Getstring(kbchar)
' wait for # press on keypad
Goto Start


Rem -------------functions below ---------------
Sub Getstring(kbchar As String * 10)
Kbchar =
""

Do
' green row run (0 led)

Key =
""
P2 = &B01111111

For Row = 1 To 4


If Row = 1 Then
P2 = &B01111110
End If
If Row = 2 Then
P2 = &B01111101
End If
If Row = 3 Then
P2 = &B01111011
End If
If Row = 4 Then
P2 = &B01110111
End If


' look for port-2 pin to go off
Debounce P2.4 , 0 , Col1 , Sub
Debounce P2.5 , 0 , Col2 , Sub
Debounce P2.6 , 0 , Col3 , Sub

If Key <> "" Then
' wait for key release
' 6-3-06
Key_rel:
P2 = &B01110000
' all rows=0 look for any col=0
Keyrel =
P2
Keyrel = Keyrel
And &B01110000

If Keyrel <> &B01110000 Then

Goto Key_rel

Else

P2 = &B01111111

Exit For

End If
Exit For
End If

Next Row

If Key = "#" Then
P2 = &B01111111
Exit Sub
End If

Kbchar = Kbchar + Key

Loop

Col1:
If Row = 1 Then Key = "1"
If Row = 2 Then Key = "4"
If Row = 3 Then Key = "7"
If Row = 4 Then Key = "."
Call Kb_disp(key)
Return

Col2:
If Row = 1 Then Key = "2"
If Row = 2 Then Key = "5"
If Row = 3 Then Key = "8"
If Row = 4 Then Key = "0"
Call Kb_disp(key)
Return

Col3:
If Row = 1 Then Key = "3"
If Row = 2 Then Key = "6"
If Row = 3 Then Key = "9"
If Row = 4 Then Key = "#"
Call Kb_disp(key)
Return

End Sub


Sub Kb_disp(key)
Lcd Key
Waitms 255
End Sub


Sub Zero()
Cls
Lcd "zero not allowed"
Wait 1
End Sub


End
' end of program size=4137 bytes
