AN #37 - Micro Controller based alarm clock with DS1307 & MAX7219 Print
by K.S.Sankar - Mostek Electronics ( www.mostek.biz )
Originaly published in ELECTRONICS FOR YOU magazine ( INDIA - W W W . E F Y M A G . C O M )



        An alarm clock using six 7-segment displays is used in this project to display the time in HH-MM-SS format using a micro controller ATMEL-89s8252. Dedicated Clock and Alarm chips seem to have vanished after the micro controllers took over and only a micro controller with an RTC chip seems the solution now to build a simple alarm clock.

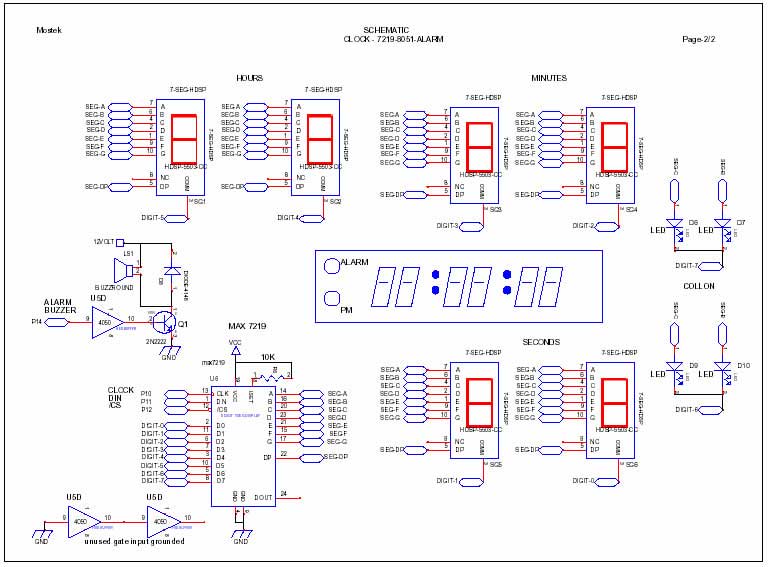

To minimise the number of components, the circuit uses a 7-segment driver IC from Maxim corp. max7219 and RTC chip from Dallas DS1307. The RTC is battery backed up with a 3v button cell to keep the clock running even during power failures. The max7219 uses a serial interface to drive the 6 digit clock avoiding software multiplexing and IC 4050 buffer s used to drive a few Leds.

The AT89s8252 micro runs of a  6Mhz crystal not critical to the time base since the RTC chip has its own 32k crystal.

Minimum no. of keys have been introduced in the circuit to keep the setting simple and only 2 Leds are there in the circuit.

The salient features of this project:-

                1-    12 hour format with PM led indicator

2-    Alarm set (hh/mm/ss)+/- with snooze 5 mins facility

3-    Set hours/min/secs / Pm /Am with +/-  switches

4-    15 level LED brightness control.

5-    Flashing colon snooze indicator

6-    ALARM set led

7-    Buzzer output

8-    PM led output

9-    ALARM SET switch

10- ALARM off switch (dim/bright)

11- Mode switch

12- ADJ + SWITCH ( Brightness increase)

13- ADJ SWITCH (Brightness decrease)

14- 1hz RTC led output

15- MODE & ADJ+ combination for RTC INITIALISE

The circuit used I2c communication with the RTC chip to get the time and a serial communication protocol with the max7219 to get the output on the 7-seg leds.

For the colon Leds between the HOURS and MINS two 3mm leds can be used which are connected to the same 7-seg data bus and vary with the same intensity.

One separate led for indicating PM is need and another Led to indicate ALARM ACTIVE.


The source code is given below:


' --------------------------------
' alarm1307.BAS 2-10-06
' Led display with ds1307 rtc chip and max7219-hh:mm:ss
' written by K.S. Sankar www.mostek.biz India
' for MCS ELECTRONICS - Holland

$large
$regfile = "89s8252.dat"
$crystal = 6000000

P0 = 0
P2 = 0
P1 = 0

P3 = &B11111111
P1.3 = 1

' ports
' p3.0-rx not used
' p3.1-tx not used
' p3.2-> sw alarm set/OFF
' p3.3-> sw mode 0=press
' p3.4-> sw set (+) 0=press
' p3.5-> sw alarm snooze 0=press
' p3.6-> i2c bus SCL
' p3.7-> i2c bus SDA
'--------------------
' p1.0-> clock
' p1.1-> din
' p1.2-> /chip select
' p1.3-> sw set (-) 0=press
' p1.4-> buzzer alarm
' p1.5-> led- PM indicator
' p1.6-> led- alarm active indicator
' p1.7 - not used

' P0- NOT USED
' P2- NOT USED

' press p3.3 + p3.4 together for INTI of RTC chip

On Int0 Int0_int
Set Tcon.0
' edge triggered
Enable Interrupts
Enable Int0
'enable the interrupt

Config Timer0 = Timer , Gate = Internal , Mode = 2
' 8 bit auto reload
On Timer0 Timer_0_overflow_int
Load Timer0 , 250
Priority Set Timer0
Enable Interrupts
Enable Timer0
Start Timer0

' define aliases
Sw_alarm_set
Alias P3.2
Sw_alarm_snooze
Alias P3.5
Sw_mode
Alias P3.3
Sw_set
Alias P3.4
Sw_set_minus
Alias P1.3

Clock
Alias P1.0
Din
Alias P1.1
Cs
Alias P1.2


Buzzer
Alias P1.4
Led_pm
Alias P1.5
Led_alarm_active
Alias P1.6
'------------------------------------------
' config I2C bus
Config Scl = P3.6
' I2C Clock
Config Sda = P3.7
' I2C Data
'-------------------------------------------

Const Ds1307w = &HD0
' Write
Const Ds1307r = &HD1
' Read
Const Sec_addmap = &H00
Const Min_addmap = &H01
Const Hour_addmap = &H02
Const Control_addmap = &H07

Const Alarm_sec_addmap = &H08
Const Alarm_min_addmap = &H09
Const Alarm_hour_addmap = &H0A
Const Alarm_active_addmap = &H0B
Const Brightness_addmap = &H0C


' buzzer ON time in seconds
Const Buz_time = 30
Const Snooze_mins = 5

' declare variables
'-------------------------------------------------------
Dim Num_hour As Byte , Num_min As Byte , Num_sec As Byte
Dim Alarm_num_hour As Byte , Alarm_num_min As Byte
Dim Alarm_num_sec As Byte

Dim Flicker_h As Bit , Flicker_m As Bit , Flicker_s As Bit
Dim Set_mode_count As Byte

Dim Temps As String * 2

Dim Reg_sec As Byte
Dim Reg_min As Byte
Dim Reg_hour As Byte

Dim Alarm_reg_sec As Byte
Dim Alarm_reg_min As Byte
Dim Alarm_reg_hour As Byte
Dim Alarm_toggle As Bit
Alarm_toggle = 0

Dim Snooze As Bit
Snooze = 0

Dim Pm_bit As Bit , Decrease As Bit
Dim Alarm_pm_bit As Bit
Dim Alarm_active As Bit , Alarm_active_byte As Byte
Dim Alarm_set As Bit , Buzzer_count As Byte , Diff As Byte
Dim Brightness As Byte , Bright_word As Word
Brightness = 7
Bright_word = 2560 + 7
Buzzer_count = 0
Alarm_set = 0
Alarm_active = 0
Alarm_active_byte = 0
Pm_bit = 0
Decrease = 0
' default alarm time
Alarm_pm_bit = 0
' am
Alarm_num_hour = 0
Alarm_num_min = 0
Alarm_num_sec = 0
Alarm_reg_hour = 0
Alarm_reg_min = 0
Alarm_reg_sec = 0

' Control

Dim Reg_mode As Byte
Dim Tempb As Byte
Dim Address As Byte

Dim Sec_count As Byte
Dim Clock_word As Word
Dim Sec_flag As Bit

Sec_count = 0
Sec_flag = 0
Clock_word = 0


'-----------------------------------------------------
Declare Sub Fni2cwrite(_slaveadd As Byte , _add As Byte , _num As Byte)
Dim _slaveadd As Byte
Dim _add As Byte
Dim _num As Byte

Declare Sub Fni2cwriteb(_slaveaddb As Byte , _addb As Byte , _numb As Byte)
Dim _slaveaddb As Byte
Dim _addb As Byte
Dim _numb As Byte

Declare Sub Fn7segh(_ih As Byte)
Dim _ih As Byte

Declare Sub Fn7segm(_im As Byte)
Dim _im As Byte

Declare Sub Fn7segs(_is As Byte)
Dim _is As Byte

Declare Sub Pulse_bit(bit1 As Bit)
Dim Bit1 As Bit

Declare Sub Pulse_word(w1 As Word)
Dim W1 As Word

Declare Sub Disp_digit(d1 As Byte , Num As Byte)
Dim D1 As Byte , Num As Byte

Declare Sub Disp_blank()

Dim I As Byte , Tens As Byte , Units As Byte
Dim J As Word
Dim K As Bit
Dim V As Integer
Dim V1 As Byte , V2 As Byte
Dim Del As Byte
Del = 1

Dim Maxdigits As Byte
Maxdigits = 8


V = &B1000111100001110

' format
' d15 d14 d13 d12 d11 d10 d09 d08 d7 d6 d5 d4 d3 d2 d1 d0
' x x x x address------ -------- data ---------

Dim Normal_mode As Word
' 0c00=shut down 0c01=normal
Normal_mode = &B0000110000000001
Dim Code_b As Word
' 09ff
Code_b = &B0000100111111111
' 0a0f led intesity
Dim Scan_limit As Word
' 0b07
Scan_limit = &B0000101100000111
' ALL 8 DIGITS
Dim Disp_test_off As Word
Disp_test_off = &B0000111100000000
Dim Disp_test_on As Word
Disp_test_on = &B0000111100000001
'Display-Test Register
'0f00 =normal 0f01 = test

Call Pulse_word(normal_mode)
Call Pulse_word(&H09ff)
Call Pulse_word(bright_word)
Call Pulse_word(scan_limit)
Call Pulse_word(disp_test_on)
Waitms 100
Call Pulse_word(disp_test_off)
Waitms 100

Gosub Read_ds1307
Gosub Read_alarm

Set_mode_count = 0
' write brightness in rtc chip
Brightness = 7
Bright_word = 2560 + 7
Call Pulse_word(bright_word)
Call Fni2cwrite(ds1307w , Brightness_addmap , Brightness)


'=-=-=-=-=-=-=-=-=-=-=-==-=-=-=-
Main:

Gosub Read_ds1307

If Alarm_set = 0 Then

Call Fn7segh(reg_hour)

Call Fn7segm(reg_min)

Call Fn7segs(reg_sec)

If Pm_bit = 0 Then
 Led_pm = 0

Else
 Led_pm = 1

End If
End If

If Alarm_set = 1 Then

Gosub Read_alarm

Call Fn7segh(alarm_reg_hour)

Call Fn7segm(alarm_reg_min)

Call Fn7segs(alarm_reg_sec)

If Alarm_pm_bit = 0 Then
 Led_pm = 0

Else
 Led_pm = 1

End If
End If

' check for alarm condition
If Alarm_active = 1 Then

If Reg_hour = Alarm_reg_hour Then

If Reg_min = Alarm_reg_min Then

If Reg_sec = Alarm_reg_sec Then

If Pm_bit = Alarm_pm_bit Then
 Buzzer = 1
  Buzzer_count = 0

End If

End If

End If

End If
End If

If Alarm_active = 0 Then
 Buzzer = 0
End If

If Buzzer_count >= Buz_time Then
 Buzzer = 0
End If


' look for set key switches
If Sw_mode = 0 Then
' wait for keyrelease
While Sw_mode = 0

If Sw_set = 0 Then

' do a clock init if both keys pressed

Gosub Clock_init

Gosub Setzero
 Set_mode_count = 4

End If
Wend


Waitms 30
 Sec_count = 0

' start a second t0 timer

Gosub Swmode
End If

If Sw_set = 0 Then

Waitms 30
 Decrease = 0

Gosub Swset
End If

If Sw_set_minus = 0 Then

Waitms 30
 Decrease = 1

Gosub Swset
End If


If Set_mode_count > 0 Then

If Sec_count > 4 Then

' more than 4 secs in set operation in idle mode

' so quit
 Set_mode_count = 0 : Alarm_set = 0
 Flicker_h = 0 : Flicker_m = 0 : Flicker_s = 0

If Alarm_active = 1 Then

Call Fn7segh(alarm_reg_hour)

Call Fn7segm(alarm_reg_min)

Call Fn7segs(alarm_reg_sec)

Wait 1

End If

End If
End If

If Alarm_set = 1 Then

If Alarm_active = 1 Then

If Sec_count > 3 Then
 Alarm_set = 0
 Led_alarm_active = 1

End If

End If
End If

If Alarm_active = 1 Then

If Alarm_set = 0 Then
 Led_alarm_active = 1

End If
End If

If Alarm_active = 0 Then
 Led_alarm_active = 0
End If

If Buzzer = 1 Then

If Sw_alarm_snooze = 0 Then

Waitms 30

' snooze sw pressed
 Snooze = 1
 Buzzer = 0

' stop buzzer and

' make : colon flicker

' increase alarm time by 5 minutes

Gosub Snooze5

End If
End If

' check for alarm set switches
If Alarm_active = 0 Then

If Alarm_toggle = 1 Then

Waitms 30

' in alarm mode
 Alarm_set = 1
 Alarm_active = 1
 Sec_count = 0

' write alarm act in ram
 Alarm_active_byte = &B00000001
 Snooze = 0

Call Fni2cwrite(ds1307w , Alarm_active_addmap , Alarm_active_byte)

End If
End If


' check for alarm OFF
If Alarm_active = 1 Then

If Alarm_toggle = 0 Then

Waitms 30

' alarm deactivated
 Alarm_set = 0
 Led_alarm_active = 0
 Alarm_active = 0
 Alarm_active_byte = &B00000000
 Snooze = 0

Call Fni2cwrite(ds1307w , Alarm_active_addmap , Alarm_active_byte)

End If
End If


If Alarm_set = 1 Then

' flash led alarm to indicate SET mode
 Led_alarm_active = Led_alarm_active
Xor 1

Waitms 10
End If

If Buzzer = 0 Then

If Sw_alarm_snooze = 0 Then

Waitms 30

' snooze pressed without buzzer ON

' dim / bright 7-segment display

If Brightness = 1 Then
 Brightness = 15

Else
 Brightness = 1

End If


' write brightness in rtc chip and 7219
 Bright_word = 2560 + Brightness

Call Pulse_word(bright_word)

Call Fni2cwrite(ds1307w , Brightness_addmap , Brightness)

End If
End If

Goto Main
'=-=-=-=-=-=-=-=-=-=-=-=-=-=-=-=-=

Swmode:
Sec_count = 0
' in set mode now
' look for set sw and shift from hours to min set
' let hours flicker for set++
Incr Set_mode_count
Flicker_h = 0 : Flicker_m = 0 : Flicker_s = 0
' 1= hours set 2= min set 3= sec set

If Set_mode_count = 1 Then
 Flicker_h = 1
End If

If Set_mode_count = 2 Then
 Flicker_m = 1
End If

If Set_mode_count = 3 Then
 Flicker_s = 1
End If

If Set_mode_count > 3 Then
 Set_mode_count = 0 : Alarm_set = 0
 Flicker_h = 0 : Flicker_m = 0 : Flicker_s = 0
End If
Return
' =-=-=-=-=-=-=-=-=-=-=-=-=-=-==-=-=

Swset:
' incr hh/mm/ or sec
Sec_count = 0
' reset our idle timer
If Set_mode_count = 1 Then

Gosub Set_hours
End If

If Set_mode_count = 2 Then

Gosub Set_minutes
End If

If Set_mode_count = 3 Then

Gosub Set_seconds
End If

' adjust brightness
If Set_mode_count = 0 Then


If Decrease = 0 Then

Incr Brightness

If Brightness >= 15 Then
 Brightness = 15

' show limit reached by flshing colon leds

Call Disp_digit(7 , 15)

Call Disp_digit(8 , 15)

Waitms 2

End If

Else

Decr Brightness

If Brightness = 0 Then
 Brightness = 1

' show limit reached by flshing colon leds

Call Disp_digit(7 , 15)

Call Disp_digit(8 , 15)

Waitms 2

End If

End If
 Bright_word = 2560 + Brightness

Call Pulse_word(bright_word)

Call Fni2cwrite(ds1307w , Brightness_addmap , Brightness)
End If

Return
'-=-=-=-=-=-=-=-=-=-=-=-=-=
Read_ds1307:
'-=-=-=-=-=-=-=-=-=-=-=-=-=

' Read Clock Data
Address = Sec_addmap
I2cstart
' Generate start
I2cwbyte Ds1307w
' Slave adsress
I2cwbyte Address
' Address of SECONDS REG
I2cstop
' Generate Stop
I2cstart
' Repeated start
I2cwbyte Ds1307r
' Slave address (read)
I2crbyte Reg_sec , Ack
I2crbyte Reg_min , Ack
I2crbyte Reg_hour , Nack
I2cstop
' Generate Stop
' check for am/pm
If Reg_hour.5 = 1 Then
 Pm_bit = 1
Else
 Pm_bit = 0
End If

'reg_hour.6=1(12 hrmode) =0(24 hourmode)
'=-=-=-=-=-=-=-=-=-=-=-
Reg_hour = Reg_hour
And &B00011111
' remove 12/24 set and am/pm bits
' set numeric variables
Num_hour =
Makedec(reg_hour)
Num_min =
Makedec(reg_min)
Num_sec =
Makedec(reg_sec)

' read brightness level
I2cstart
' Generate start
I2cwbyte Ds1307w
' Slave adsress
I2cwbyte Brightness_addmap
I2cstop
' Generate Stop
I2cstart
' Repeated start
I2cwbyte Ds1307r
' Slave address (read)
I2crbyte Brightness , Nack
I2cstop
Brightness =
Makedec(brightness)
Bright_word = 2560 + Brightness
Return

'---------------------------------------------

Clock_init:
' double key stroke
Address = Sec_addmap
Tempb = Reg_sec
And &B01111111
' start Oscillator Enable bit 7 of seconds put 0
I2cstart
I2cwbyte Ds1307w
I2cwbyte Address
I2cwbyte Tempb
I2cstop
' Generate Stop

Address = Hour_addmap
Reg_hour.6 = 1
' 12-Hour Mode
Reg_hour.5 = 0
' am mode
I2cstart
I2cwbyte Ds1307w
I2cwbyte Address
I2cwbyte Reg_hour
I2cstop
' Generate Stop

Address = Control_addmap
' control address map

Tempb = &B10010000
' 1 Hz SQW Output
I2cstart
I2cwbyte Ds1307w
I2cwbyte Address
I2cwbyte Tempb
I2cstop
Return

'-------------------------------------------------
Setzero:
'=-=-=-=
' set time to 11:59:50 am for testing
Pm_bit = 0
Num_hour = 11
Reg_hour =
Makebcd(num_hour)
Reg_hour.5 = 0
' above force am mode 0=am 1=pm
Reg_hour.6 = 1
' force 12 hour
Num_min = 59
Num_sec = 50

Call Fni2cwriteb(ds1307w , Hour_addmap , Reg_hour)
Call Fni2cwrite(ds1307w , Min_addmap , Num_min)
Call Fni2cwrite(ds1307w , Sec_addmap , Num_sec)

' -----
Alarm_num_hour = 12
Alarm_num_min = 00
Alarm_num_sec = 01
Alarm_active_byte = &B00000000
Alarm_active = 0

Alarm_reg_hour =
Makebcd(alarm_num_hour)
Alarm_reg_min =
Makebcd(alarm_num_min)
Alarm_reg_sec =
Makebcd(alarm_num_sec)

Alarm_reg_hour.6 = 1
' 12-Hour Mode
Alarm_reg_hour.5 = 1
' pm mode

' alarm= 12:00:01 pm
Call Fni2cwriteb(ds1307w , Alarm_hour_addmap , Alarm_reg_hour)
Call Fni2cwrite(ds1307w , Alarm_min_addmap , Alarm_num_min)
Call Fni2cwrite(ds1307w , Alarm_sec_addmap , Alarm_num_sec)
Call Fni2cwrite(ds1307w , Alarm_active_addmap , Alarm_active_byte)
' set min brightness
Brightness = 1
Bright_word = 2560 + Brightness
Call Pulse_word(bright_word)
Call Fni2cwrite(ds1307w , Brightness_addmap , Brightness)
Return

' =-=-=-=-=-=-=-
Set_seconds:
' set sec to 0
'=-=-=-=
If Alarm_set = 1 Then

Gosub Alarm_set_seconds
End If

If Decrease = 1 Then
 Decrease = 0
 Num_sec = 00
Else
 Num_sec = 54
End If

 Reg_sec =
Makebcd(num_sec)

Call Fni2cwriteb(ds1307w , Sec_addmap , Reg_sec)

Gosub Read_ds1307

Waitms 5
Return

' =-=-=-=-=-=-=-==-=-=-=-=
Alarm_set_seconds:
' set sec to 0
'=-=-=-=
If Decrease = 1 Then
 Decrease = 0
 Alarm_num_sec = 00
Else
 Alarm_num_sec = 54
End If

 Alarm_reg_sec =
Makebcd(alarm_num_sec)

Call Fni2cwriteb(ds1307w , Alarm_sec_addmap , Alarm_reg_sec)

Gosub Read_alarm

Waitms 5
Return

' =-=-=-=-=-=-=-
Set_minutes:
' set mins
'=-=-=-=
If Alarm_set = 1 Then

Gosub Alarm_set_minutes

Return
End If

Num_min =
Makedec(reg_min)

If Decrease = 0 Then

Incr Num_min

If Num_min > 59 Then
 Num_min = 0
 Reg_min = 0

End If
Else

Decr Num_min

If Num_min = 255 Then
 Num_min = 59
 Reg_min = 59

End If
End If


Call Fni2cwrite(ds1307w , Min_addmap , Num_min)

Gosub Read_ds1307

Call Fn7segm(reg_min)

Waitms 5
 Decrease = 0
Return


' =-=-=-=-=-=-=-
Alarm_set_minutes:
'=-=-=-=-=-=-=-=
Alarm_num_min =
Makedec(alarm_reg_min)

If Decrease = 0 Then

Incr Alarm_num_min

If Alarm_num_min > 59 Then
 Alarm_num_min = 0
 Alarm_reg_min = 0

End If
Else

Decr Alarm_num_min

If Alarm_num_min = 255 Then
 Alarm_num_min = 59
 Alarm_reg_min = 59

End If
End If


Call Fni2cwrite(ds1307w , Alarm_min_addmap , Alarm_num_min)

Gosub Read_alarm

Call Fn7segm(alarm_reg_min)

Waitms 5
 Decrease = 0
Return

' =-=-=-=-=-=-=-
Set_hours:
'=-=-=-=-=-=-=-=
If Alarm_set = 1 Then

Gosub Alarm_set_hours

Return
End If

If Decrease = 0 Then

Incr Num_hour

If Num_hour > 12 Then
 Num_hour = 1

End If
Else
Decr Num_hour

If Num_hour = 0 Then
 Num_hour = 12

End If
End If

If Decrease = 0 Then

If Num_hour = 12 Then
 Pm_bit = Pm_bit
Xor 1

End If
Else

If Num_hour = 11 Then
 Pm_bit = Pm_bit
Xor 1

End If
End If


Reg_hour =
Makebcd(num_hour)
Reg_hour.6 = 1
' set 12 hr mode

If Pm_bit = 1 Then
 Reg_hour.5 = 1

' pm
Else
 Reg_hour.5 = 0

' am
End If


Call Fni2cwriteb(ds1307w , Hour_addmap , Reg_hour)

Gosub Read_ds1307

Call Fn7segh(reg_hour)

Waitms 5
 Decrease = 0
Return

' =-=-=-=-=-=-=-
Alarm_set_hours:
' set alarm hours
'=-=-=-==-=-=-=-=

If Decrease = 0 Then
Incr Alarm_num_hour

If Alarm_num_hour > 12 Then
 Alarm_num_hour = 1

End If
Else
Decr Alarm_num_hour

If Alarm_num_hour = 0 Then
 Alarm_num_hour = 12

End If
End If

If Decrease = 0 Then

If Alarm_num_hour = 12 Then
 Alarm_pm_bit = Alarm_pm_bit
Xor 1

End If
Else

If Alarm_num_hour = 11 Then
 Alarm_pm_bit = Alarm_pm_bit
Xor 1

End If
End If


Alarm_reg_hour =
Makebcd(alarm_num_hour)
Alarm_reg_hour.6 = 1
' set 12 hr mode

If Alarm_pm_bit = 1 Then
 Alarm_reg_hour.5 = 1

' pm
Else
 Alarm_reg_hour.5 = 0

' am
End If


Call Fni2cwriteb(ds1307w , Alarm_hour_addmap , Alarm_reg_hour)

Gosub Read_alarm

Call Fn7segh(alarm_reg_hour)
 Decrease = 0
Return

' =-=-=-=-=-=-=-
' functions below
'=-=-=-=-=-= function below---- - -- -
Sub Fn7segh(_ih As Byte)
 Tempb =
Makedec(_ih)
 Units = Tempb
Mod 10
 Tens = Tempb / 10

Call Disp_digit(5 , Units)

Call Disp_digit(6 , Tens)


Call Disp_digit(7 , 1)

Call Disp_digit(8 , 1)

If Flicker_h = 1 Then

' if in set mode make display flicker

Waitms 5

' turn it on again

Call Disp_digit(5 , 15)

Call Disp_digit(6 , 15)

Waitms 5
End If

If Snooze = 1 Then

' if in snooze mode make : flicker

Waitms 2

' turn it on again

Call Disp_digit(7 , 15)

Call Disp_digit(8 , 15)

Waitms 2
End If

End Sub
'-=-=-=-=-=-=-=-=

Sub Fn7segm(_im As Byte)
 Tempb =
Makedec(_im)
 Units = Tempb
Mod 10
 Tens = Tempb / 10

Call Disp_digit(3 , Units)

Call Disp_digit(4 , Tens)
If Flicker_m = 1 Then

' if in set mode make display flicker

Waitms 5

' turn it on again

Call Disp_digit(3 , 15)

Call Disp_digit(4 , 15)

Waitms 5
End If
End Sub

'-=-=-=-=-=-=-=-=
Sub Fn7segs(_is As Byte)
 Tempb =
Makedec(_is)
 Units = Tempb
Mod 10
 Tens = Tempb / 10

Call Disp_digit(1 , Units)

Call Disp_digit(2 , Tens)
If Flicker_s = 1 Then

' if in set mode make display flicker

Waitms 5

' turn it on again

Call Disp_digit(1 , 15)

Call Disp_digit(2 , 15)

Waitms 5
End If
End Sub
'-=-=-=-=-=-=-=-=

Sub Fni2cwrite(_slaveadd As Byte , _add As Byte , _num As Byte)

Dim _bcdnumber As Byte
 _bcdnumber =
Makebcd(_num )

I2cstart

I2cwbyte _slaveadd

I2cwbyte _add

I2cwbyte _bcdnumber

I2cstop
End Sub
'-=-=-=-=-=-=-=-=
Sub Fni2cwriteb(_slaveaddb As Byte , _addb As Byte , _numb As Byte)

I2cstart

I2cwbyte _slaveaddb

I2cwbyte _addb

I2cwbyte _numb

I2cstop
End Sub

'=-=-=-=-=-=-=-=-=-=-=-
Sub Pulse_bit(bit1 As Bit)
 Din = Bit1
 Clock = 1
 Clock = 0
 Din = 0
End Sub
'=-=-==-==-=-=-=-=-=-=-=-=
Sub Pulse_word(w1 As Word)
 Cs = 0

Dim _i As Byte , _k As Bit
For _i = 1 To 16
 J = W1
And &B1000000000000000
If J = &B1000000000000000 Then : _k = 1 : Else : _k = 0 : End If

Call Pulse_bit(_k)

Shift W1 , Left , 1

Next _i
 Cs = 1
End Sub
'-=-=-=-=-==-=-=-=-=-=-=-=-=-==-=-=--=-=-=--==
Sub Disp_digit(d1 As Byte , Num As Byte)
W1 = D1 * 256
W1 = W1 + Num
Call Pulse_word(w1)
End Sub
'=-=-=-=-=-=-=-==-=-=-=-
Sub Disp_blank()

Dim _j As Byte

For _j = 1 To Maxdigits

Call Disp_digit(_j , 15)

Next _j
End Sub

' int subroutine -----------------
Timer_0_overflow_int:
Incr Clock_word

If Clock_word > 2000 Then
 Clock_word = 0
 Sec_flag = 1

Incr Sec_count

Incr Buzzer_count
End If
Return

'=-=-=-=-=-=-=-=-=-=-=-=-=-=-=-=-=-=-=-=-==-=-==-
Read_alarm:
' Read alarm Data
Address = Alarm_sec_addmap
I2cstart
I2cwbyte Ds1307w
I2cwbyte Address
I2cstop
I2cstart
I2cwbyte Ds1307r
' Slave address (read)
I2crbyte Alarm_reg_sec , Ack
I2crbyte Alarm_reg_min , Ack
I2crbyte Alarm_reg_hour , Ack
I2crbyte Alarm_active_byte , Nack
I2cstop
' Generate Stop
' check for am/pm
'Alarm_active = 1
If Alarm_active_byte = 1 Then
 Alarm_active = 1
Else
 Alarm_active = 0
End If

If Alarm_reg_hour.5 = 1 Then
 Alarm_pm_bit = 1
Else
 Alarm_pm_bit = 0
End If


Alarm_reg_hour = Alarm_reg_hour
And &B00011111
' remove 12/24 set and am/pm bits
' set numeric variables
Alarm_num_hour =
Makedec(alarm_reg_hour)
Alarm_num_min =
Makedec(alarm_reg_min)
Alarm_num_sec =
Makedec(alarm_reg_sec)

Return
'-=-=-=-=-=-=-=-=-=-=-=-=-=--
Snooze5:
'increment alarm time by (snooze_mins) minutes

Gosub Read_alarm
 Alarm_num_min =
Makedec(alarm_reg_min)
 Alarm_num_min = Alarm_num_min + Snooze_mins


If Alarm_num_min > 59 Then
 Diff = Alarm_num_min - 60
 Alarm_num_min = Diff
 Alarm_reg_min =
Makebcd(alarm_num_min)

' inc hrs


Incr Alarm_num_hour

If Alarm_num_hour > 12 Then
 Alarm_num_hour = 1

End If


If Alarm_num_hour = 12 Then
 Alarm_pm_bit = Alarm_pm_bit
Xor 1

End If

End If

Alarm_reg_hour =
Makebcd(alarm_num_hour)
Alarm_reg_hour.6 = 1
' Set 12 Hr Mode

If Alarm_pm_bit = 1 Then
 Alarm_reg_hour.5 = 1

' pm
Else
 Alarm_reg_hour.5 = 0

' am
End If

Call Fni2cwriteb(ds1307w , Alarm_hour_addmap , Alarm_reg_hour)
Call Fni2cwrite(ds1307w , Alarm_min_addmap , Alarm_num_min)
Gosub Read_alarm
Return
'=-=-=-=-=-=-=-=-=-=-=-=-=-=-=-
Rem The Interrupt Handler For The Int0 Interrupt
Int0_int:
Alarm_toggle = Alarm_toggle
Xor 1
' p3.2
Return
End
' end of program 3742 bytes long
