MINI-MAX/51-C - 8051 compatible Single board computer Print
It is perfect for educational usage but also for the hobbyist to do all kind of experiments.

MINI-MAX/51-C

Note that this is a product is from BIPOM Electronics. It is perfect for educational usage but also for the hobbyist to do all kind of experiments.

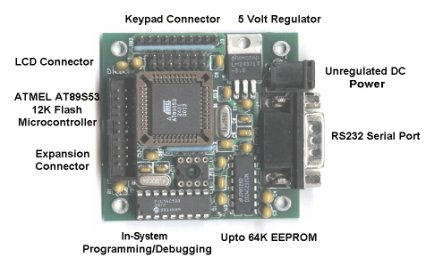

8051 compatible Single board computer (SBC) based on ATMEL 89S family.

  • ATMEL AT89S53 micro-controller with 12K Flash program memory, 256 bytes data RAM
  • (Optional) Philips P89C51RD2 micro-controller with 64K Flash, 1K RAM
  • 32 Input/Output Lines
  • LCD connector
  • Keypad connector
  • Expansion connector
  • In-system programming through your PC's serial port.
  • Operates with unregulated 6 Volts DC.
  • 22.1184 MHz clock speed.
  • 512 bytes serial EEPROM ( Upgradeable to 128 Kilobyte serial EEPROM )
  • RS232 port for connection to pads, hand-held terminals, external computers.
    This port also powers external devices with its own 5 Volt power supply.
  • 2-layer board for maximum reliability, no vias.
  • Serial cable and serial downloader are included at no extra charge.
Manual
Peripherals
Accessories
Software
Applications
  includes board, micro-controller,  serial cable, manual
