Easy TCP/IP I²C TWI Print
Connect your controller to the Internet using only 4 pins

 MCS Electronics presents





Making things easy.



A few years ago MCS Electronics introduced Easy-TCP/IP, which gave you a way of interfacing AVR microcontrollers to the Internet in a fast cost effective way.

Easy-TCP/IP is now being used in the world of embedded electronics and we aim to improve our products in response to our users’ feedback. That’s the reason why we now like to introduce EASY-TCP/IP TWI – a TCP/IP interface that only uses a few I/O pins of your microcontroller, while keeping your program code as good as unchanged.

Key advantages of the EASY-TCP/IP TWI is that it only uses two I/O pins for I²C serial communications plus one interrupt pin and a reset pin. So a maximum of four I/O pins is used for a full TCP/IP interface. The previously released TCP/IP board used about 16 I/O lines, making it only suitable for relatively large AVR controllers that can address external memory.

The reduction of I/O pins of the Easy-TCP/IP TWI makes is slower than the EASY-TCP, but for a lot of embedded applications high speed is not a requirement. It’s up to you to decide whether you choose for speed, EASY-TCP or a compact and economic EASY-TCP/IP TWI.

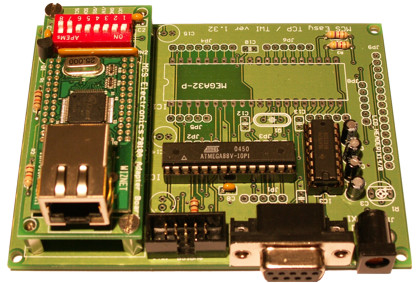

        TCP/IP-TWI Motherboard with TWI-Adapter Board.





Features Easy TCP/IP I²C TWI Development board

Supports ATMega32, ATMega88 or pin compatible microcontroller
RS232 Interface
HD44780 LCD connection
RS232 Serial port connector
Compatible for programming with STK200/300 dongle (LPT)
Headers for most ports pins, GND and +5V

BASCOM-AVR Code samples available.




        IIM7010A Adapter PCB. This is available as a KIT in our SHOP


Products

The following TWI products are available thru our shop:

Easy TCP/IP I²C TWI Development board
IIM7010A Adapter Board PCB
IIM7010A Ethernet Module


Downloads

Easy TCP/IP I²C TWI Manual
Easy TCP/IP I²C TWI Manual - Polish
Easy TCP/IP I²C TWI Adapter Board Manual
Sourcecode



A simple web server

This code shows a simple webserver for the TCP/IP-TWI Development Board.







'------------------------------------------------------------------------------
'                         webserver_twi.bas
'                     simple webserver demo for Easy-TCP/IP TWI
'                   (c) 2005 MCS Electronics
'
'This is exactly the same webserver as the webserver.bas only this program
'can be used on the Easy-TCP/IP TWI
'
'------------------------------------------------------------------------------
$regfile =  "m32def.dat"
$crystal = 8000000
$baud = 19200


'used constants
Const Sock_stream = $01                                     ' Tcp
Const Sock_dgram = $02                                      ' Udp
Const Sock_ipl_raw = $03                                    ' Ip Layer Raw Sock
Const Sock_macl_raw = $04                                   ' Mac Layer Raw Sock
Const Sel_control = 0                                       ' Confirm Socket Status
Const Sel_send = 1                                          ' Confirm Tx Free Buffer Size
Const Sel_recv = 2                                          ' Confirm Rx Data Size

'socket status
Const Sock_closed = $00                                     ' Status Of Connection Closed
Const Sock_arp = $01                                        ' Status Of Arp
Const Sock_listen = $02                                     ' Status Of Waiting For Tcp Connection Setup
Const Sock_synsent = $03                                    ' Status Of Setting Up Tcp Connection
Const Sock_synsent_ack = $04                                ' Status Of Setting Up Tcp Connection
Const Sock_synrecv = $05                                    ' Status Of Setting Up Tcp Connection
Const Sock_established = $06                                ' Status Of Tcp Connection Established
Const Sock_close_wait = $07                                 ' Status Of Closing Tcp Connection
Const Sock_last_ack = $08                                   ' Status Of Closing Tcp Connection
Const Sock_fin_wait1 = $09                                  ' Status Of Closing Tcp Connection
Const Sock_fin_wait2 = $0a                                  ' Status Of Closing Tcp Connection
Const Sock_closing = $0b                                    ' Status Of Closing Tcp Connection
Const Sock_time_wait = $0c                                  ' Status Of Closing Tcp Connection
Const Sock_reset = $0d                                      ' Status Of Closing Tcp Connection
Const Sock_init = $0e                                       ' Status Of Socket Initialization
Const Sock_udp = $0f                                        ' Status Of Udp
Const Sock_raw = $10                                        ' Status of IP RAW

'in debug mode to send some info to the terminal
Const Debug = 1
Const Authenticate = 0                                      ' use 1 to use authentication


$eepleave ' do not delete the EEP file since we generated it with the converter tool

#if Debug

Print "init W3100A"
#endif
Enable  Interrupts
Config Tcpip = Int0 , Mac = 00.40.12.34.56.78 , Ip = 192.168.0.8 , Submask = 255.255.255.0 , Gateway = 192.168.0.1 , Localport = 1000 , Tx = $55 , Rx = $55 , Twi = &H80 , Clock = 400000

'dim used variables
Dim S As  String * 140 At &H100 , Shtml As  String * 15 , Sheader As  String * 30
Dim Buf(120) As Byte At &H100 Overlay ' this is the same data as S but we can treat it as an array now
Dim Tempw As Word
Dim I As Byte , Bcmd As Byte , P1 As Byte , P2 As Byte , Size As Word
Dim Bcontent As Byte
Dim Bauth As Byte , Ipcon As Long ' for optional authentication

'note that this webserver demo uses just 1 connection. It can easy be changed to use all 4 connections
'also note that the connection is terminated by the webserver after the data has been sent.
'this is done so more clients can be served, it is not acording to the RFC
'Also included is some simple authentiation. It works by determining the client IP number
'When it differs from the current connection, the user/pwd will be asked. It is decoded with the base64dec() routine

'Usualy we start with creating a connection. This is also tru for this demo.
'Because the socketstat()function will find out that the connection is closed, it will take then
'        Case Sock_closed part of the select case statement, and so will create a new socket.
'After that it will listen to the connection for a client.


I
= 0                                                       ' we use just 1 connection with number 0
Do
    Tempw
=  Socketstat(i , 0) ' get status

Select Case Tempw

Case Sock_established

#if Debug

Print "sock_est" ' delete it when it sends to much data to the terminal

#endif

If  Getdstip(i) <> Ipcon Then ' the current client is different then the number stored
               Bauth
= 0                                    ' reset authentication bit

End If
            Tempw
=  Socketstat(i , Sel_recv) ' get received bytes

#if Debug

Print  "receive buffer size : " ; Tempw

#endif

If Tempw > 0 Then ' if there is something received
               Bcmd
= 0

Do
                 Tempw
=  Tcpread(i , S) ' read a line

If Left(s , 3) = "GET" Then
                    Bcmd
= 1                                ' GET /index.htm HTTP/1.1

Gosub Page

Elseif Left(s , 4) = "HEAD" Then
                    Bcmd
= 2

Gosub Page

Elseif Left(s , 4) = "POST" Then
                    Bcmd
= 3

Elseif Left(s , 15) =  "Content-Length:" Then ' for post
                    S
= Mid(s , 16) : Bcontent = Val(s)

Elseif Left(s , 20) =  "Authorization: Basic" Then ' user and pwd specified

Print S
                    S
= Mid(s , 22)  'Authorization: Basic bWFyazptYXJr

Print "{" ; S ; "}" ' this is the user/pwd part the browser is sending

#if Debug

Print  "Decoded user:pwd " ;  Base64dec(s)

#endif

If  Base64dec(s) = "mark:mark" Then 'pwd ok
                       Bauth
= 1                            ' verified
                       Ipcon
=  Getdstip(i) ' store current ip number

End If

Else

#if Debug

Print S                             ' print data the client browser sent

#endif

End If

Loop  Until S = "" ' wait until we get an empty line


#if Authenticate

If Bauth = 0 Then
                  Tempw
=  Tcpwrite(i ,  "HTTP/1.0 401 OK{013}{010}") ' ask for user password
                  Tempw
=  Tcpwrite(i ,  "WWW-Authenticate: Basic realm={034}ServerID{034}{013}{010}")

Goto Continue

Else
                 Tempw
=  Tcpwrite(i ,  "HTTP/1.0 200 OK{013}{010}")

End If

#else ' no authentication used
                     Tempw
=  Tcpwrite(i ,  "HTTP/1.0 200 OK{013}{010}") 'send ok

#endif

If Bcmd = 3 Then

#if Debug

Print "Posted data"

#endif
                  Tempw
=  Tcpread(i , Buf(1) , Bcontent) ' read data

#if Debug
                      Bcontent
= Bcontent + 1
                      Buf
(bcontent) = 0                     ' put string terminator at end of data so we can handle it as a string

Print S

#endif
                  Shtml
= "/redirect.htm" ' redirect to www.mcselec.com

End If

Gosub Stuur                                  ' GET or HEAD or POST feedback so send it
Continue
:

Print  "closing socket"

Closesocket I                                ' close the connection

Print "done"

End If

Case Sock_close_wait

#if Debug

Print "CLOSE_WAIT"

#endif

Closesocket I                                   ' we need to close

Case Sock_closed

#if Debug

Print  "CLOSED"

#endif
            I
=  Getsocket(0 , Sock_stream , 5000 , 0) ' get a new socket

Socketlisten I                                  ' listen

#if Debug

Print  "Listening on socket : " ; I

#endif

End  Select

Loop
End

'get html page out of data
Page
:
   P1
=  Instr(s , " ") ' find first space
   P1
= P1 + 1                                              ' 4
   P2
=  Instr(p1 , S , " ") ' find second space
   P2
= P2 - P1
   Shtml
= Mid(s , P1 , P2) ' dont use too long page names
   Shtml
=  Lcase(shtml) ' make lower case

#if Debug

Print "HTML page:" ; Shtml

#endif
Return


'send data
 Stuur
:

Dim Woffset As Word , Bcontenttype As Byte , Wsize As Word , Bgenerate As Bit , Ihitcounter As  Integer
   Bgenerate
= 0                                            ' by default

Select Case Shtml

Case "/index.htm"
           Bcontenttype
= 0 : Bgenerate = 1

Case "/redirect.htm"
           Bcontenttype
= 0 : Bgenerate = 1

Case "/post.htm" : Wsize = 277
           Bcontenttype
= 0 : Woffset = 0

Case "/notfound.htm" : Wsize = 123
           Bcontenttype
= 0 : Woffset = 277

Case Else ' not found
           Bcontenttype
= 0 : Woffset = 277 : Wsize = 123

End  Select


Select Case Bcontenttype

Case 0: ' text
              Tempw
=  Tcpwrite(i ,  "Content-Type: text/html{013}{010}")

Case 1: ' gif

End  Select

If Bgenerate = 0 Then ' data from eeprom
      S
=  "Content-Length: " + Str(wsize) +  "{013}{010}"
      Tempw
=  Tcpwritestr(i , S , 255) ' add additional CR and LF
      Tempw
=  Tcpwrite(i , Eeprom , Woffset , Wsize) ' write data

Else ' we generate the data

If Shtml = "/index.htm" Then
         S
=  "<html><head><title>Easy TCP/IP</title></head><body><p><b>MCS webserver test<br></b>Hits : " + Str(ihitcounter) +  "</p><p>&nbsp;</p><p>&nbsp;</p></body></html>"

Incr Ihitcounter                                   'increase hitcounter

Else
         S
=  "<html><head><title</title></head><body onload='window.location.href=" + Chr(34) +  "http://www.mcselec.com" + Chr(34) +  "'></body></html>"

End If
      Wsize
= Len(s) ' size of body
      Sheader
=  "Content-Length: " + Str(wsize) +  "{013}{010}"
      Tempw
=  Tcpwritestr(i , Sheader , 255) ' add additional CR and LF
      Tempw
=  Tcpwrite(i , S , Wsize) ' send body

End If

Return
