AN #01 - Evaluation board for the AT89C2051 and AT89C4051 Print E-mail
Evaluation board for the AT89C2051 and AT89C4051

This board is intended for the AT89C2051 but also supports the AT89C4051.

It supports the following hardware :

  • RS-232 interface, DB-9
  • Header for LCD display
  • I2C, PCF8574 I/O extender
  • AT24C04, I2C EEPROM

Evaluation board Schematic:

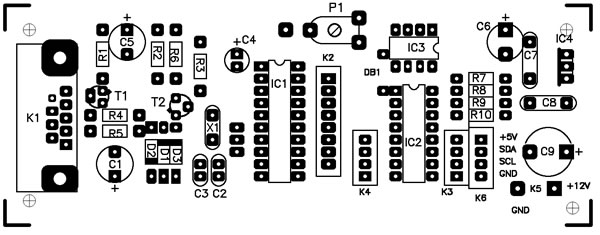

Evaluation board PCB component side:

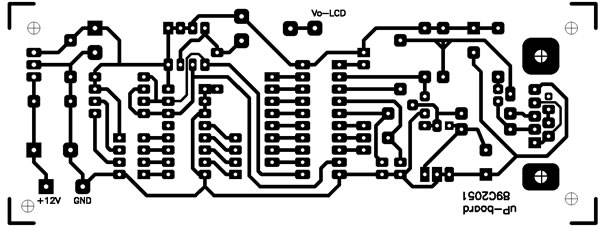

Evaluation board PCB:
